Social Squared Client-Side Web Part (SPFx) Phone Application

Video link: https://lightningtools.wistia.com/medias/6pyfwttevi

Git Repository: https://github.com/Ashot72/Social-Squared-Phone-App

The phone app is built with Quasar Framework which is based on Vue.js https://quasar-framework.org/

With the same codebase you can develop Responsive Single Page Apps, Server-side Render Apps, Regressive Web Apps, Mobile Apps, Electron Apps.

The phone app is still in development and we implemented the layout and login, forums, topics pages only.

You will also see how to authenticate the app via Azure Active Directory. It just takes a minute!!! You register the app, grant required permissions and that is it!

The phone app is ready to go and it is pretty fast!

You can develop with any Quasar theme, regardless of the platform you are building (Android, IOS). It offers two themes out of box:

Material and IOS. We can test IOS theme on Android during development which is good as it is not always easy to test apps on IOS (watch the video).

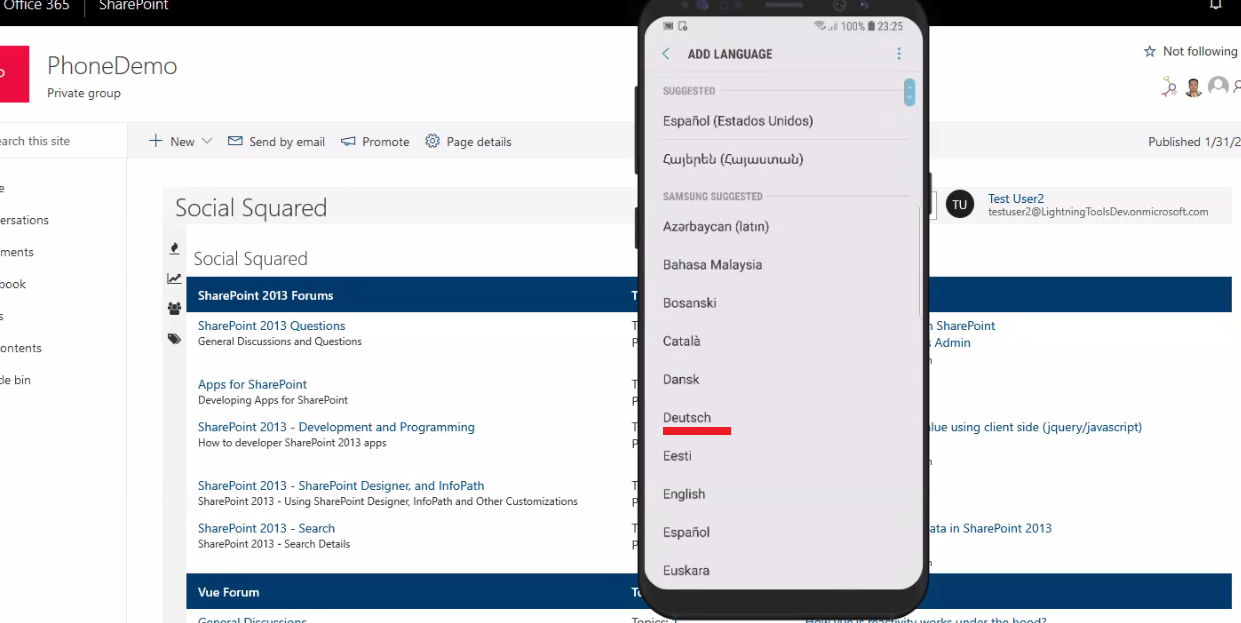

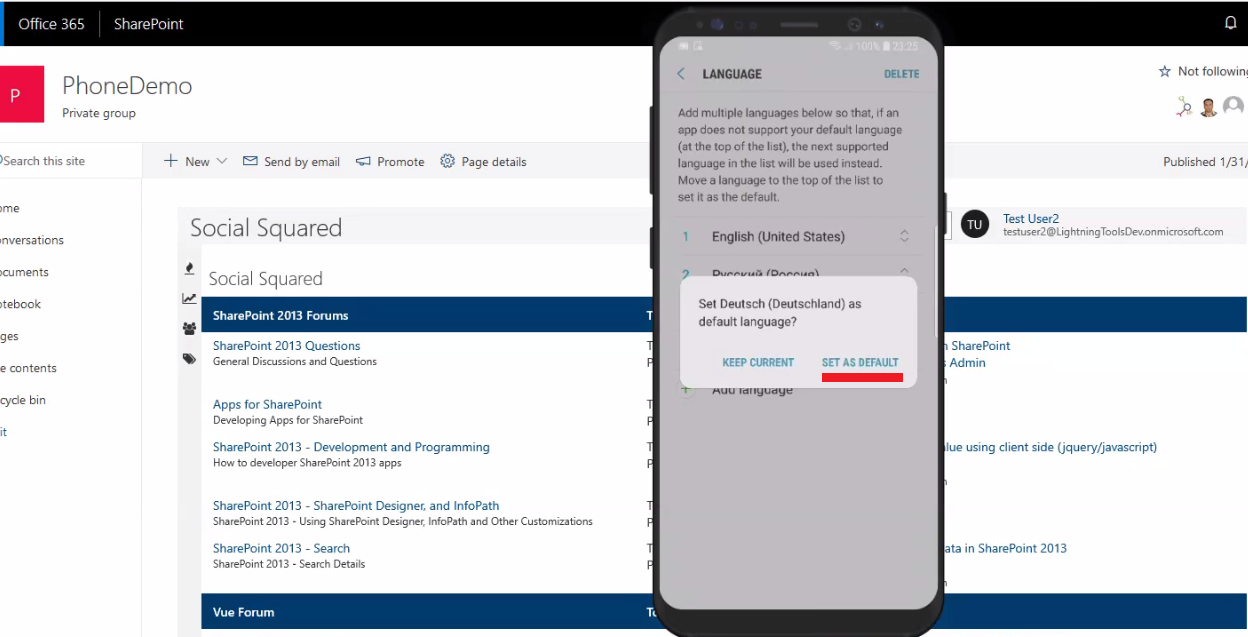

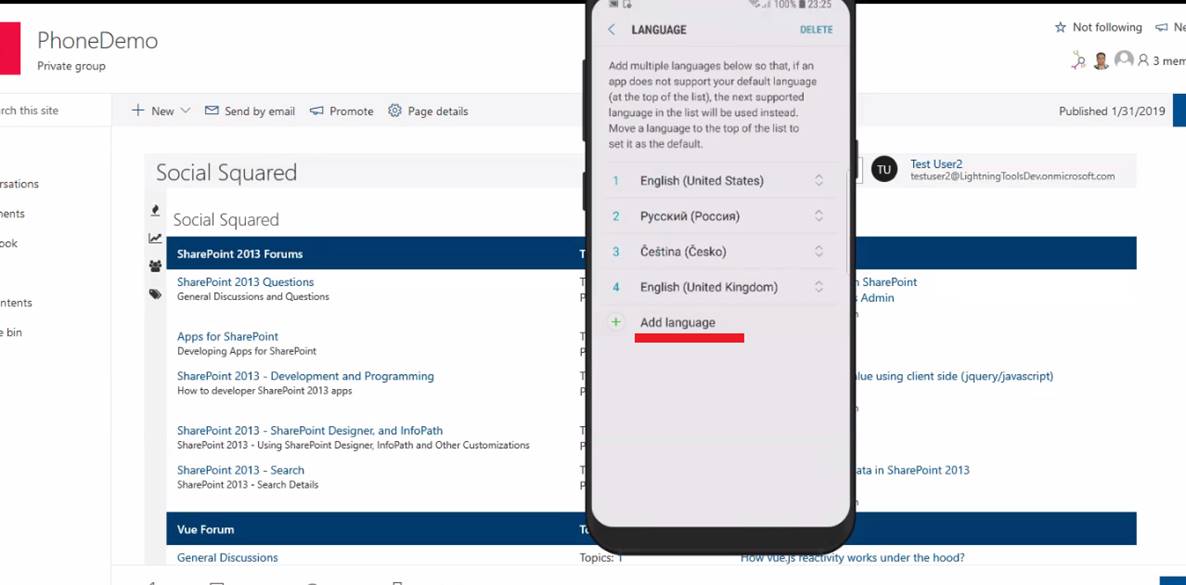

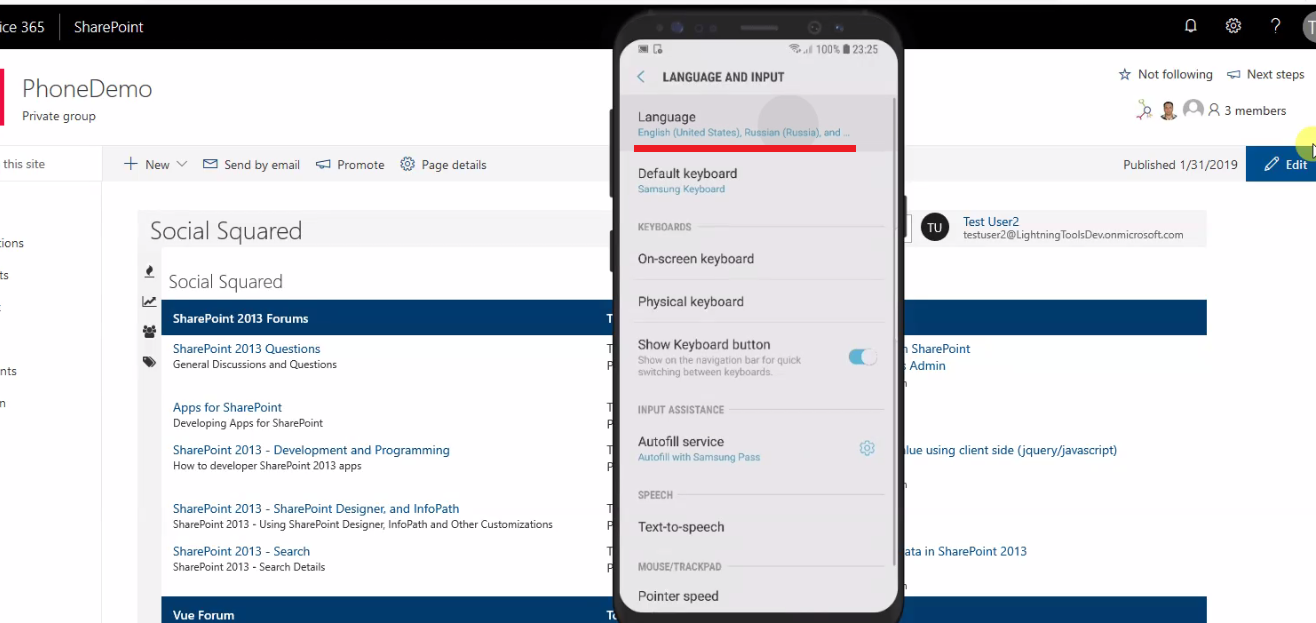

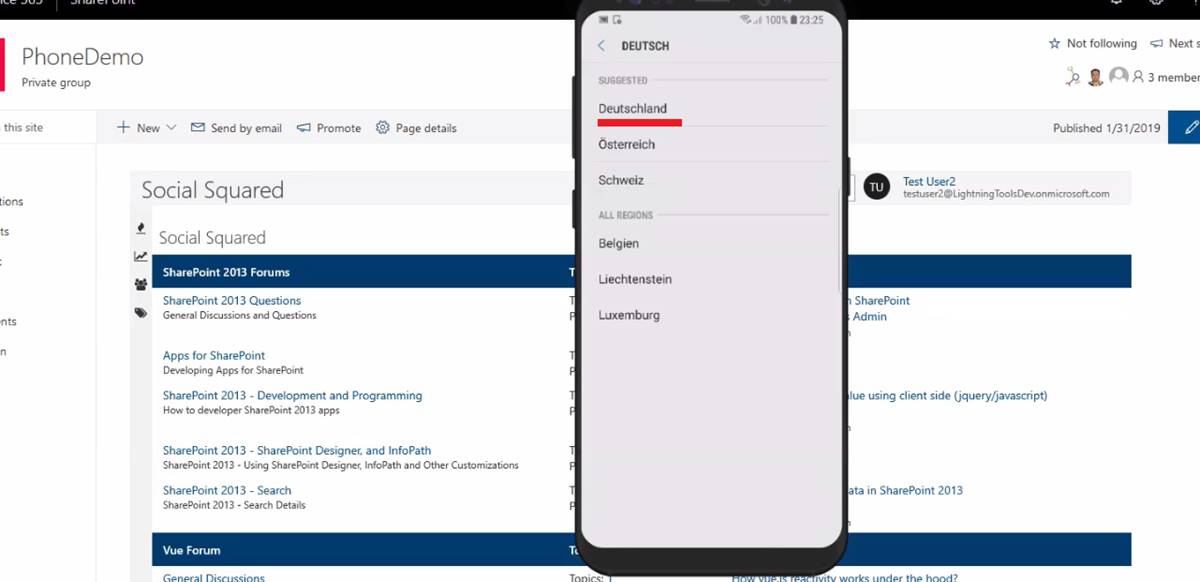

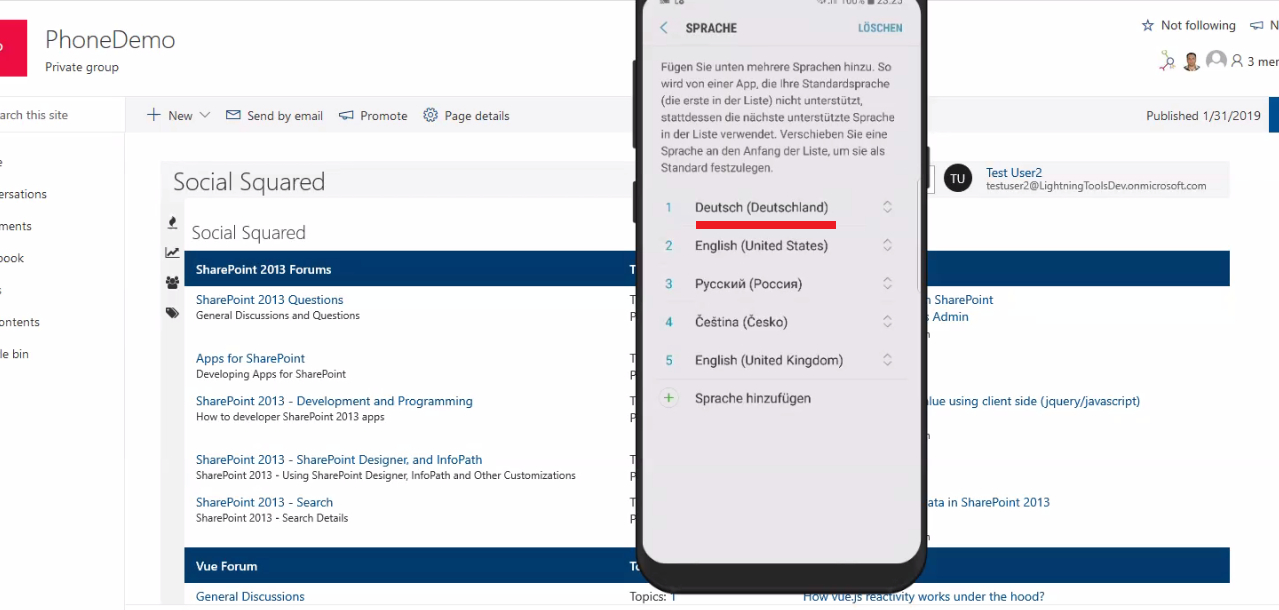

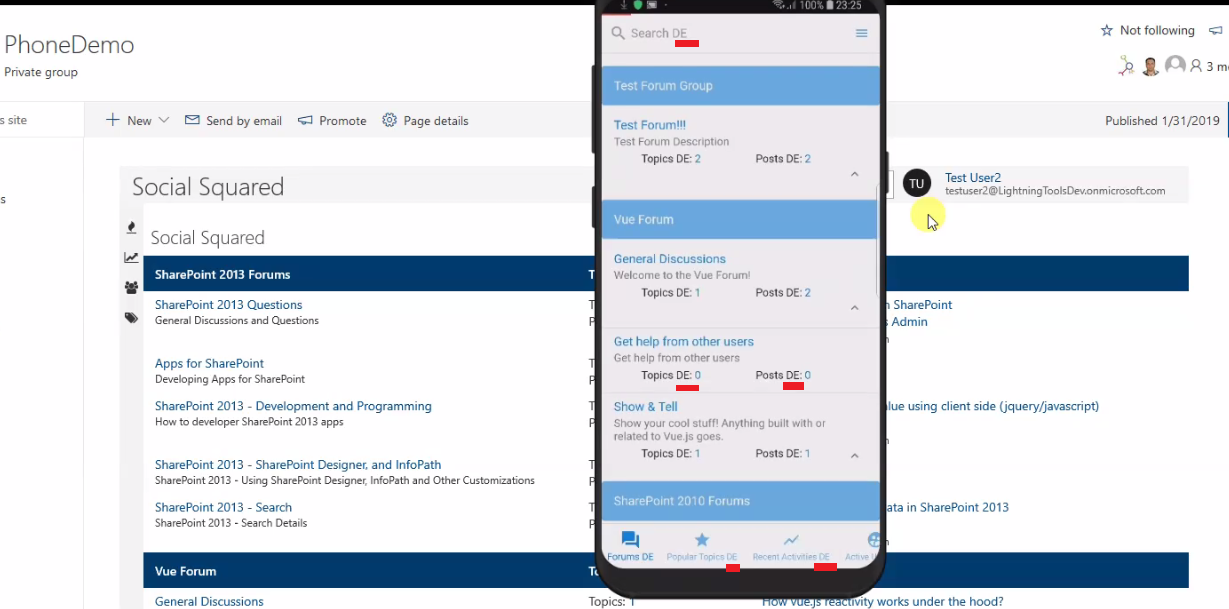

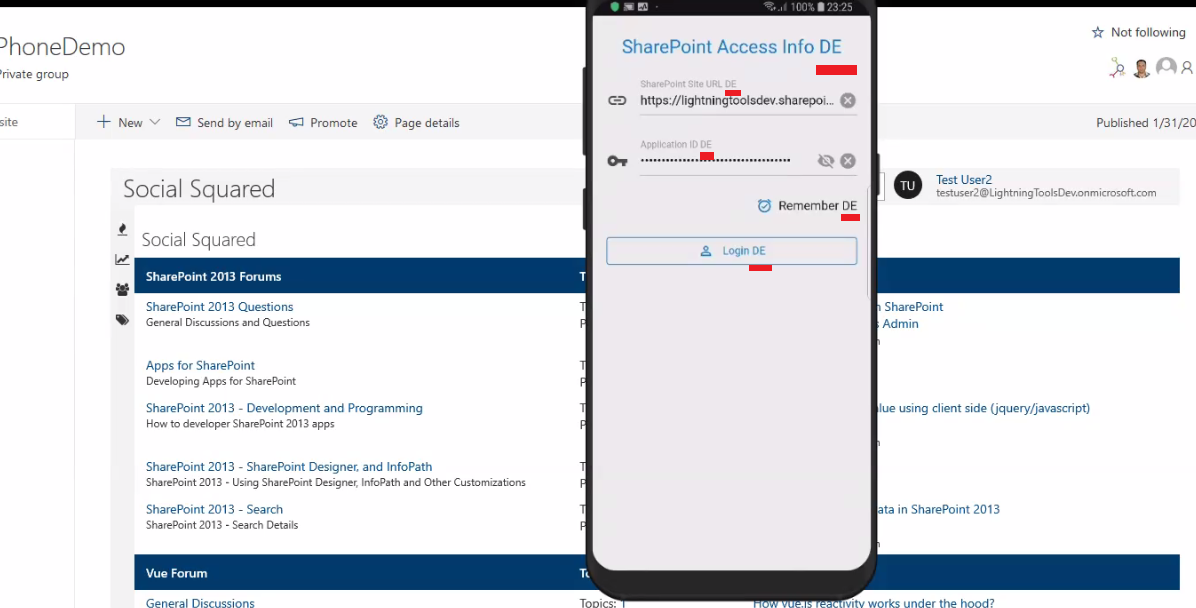

The app supports different languages.

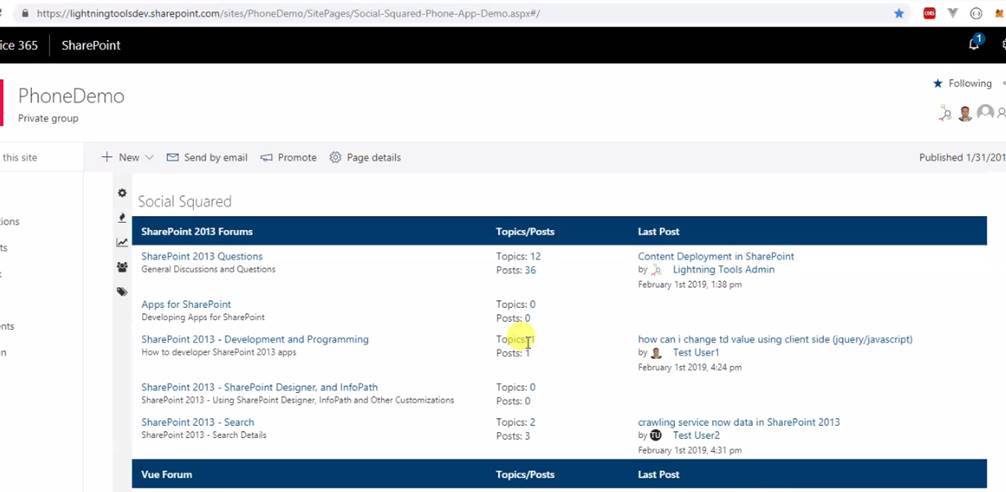

We will demonstrate the phone app in conjunction with Social Squared client-side web part (SPFx) which also works in Microsoft Teams.

Figure 1

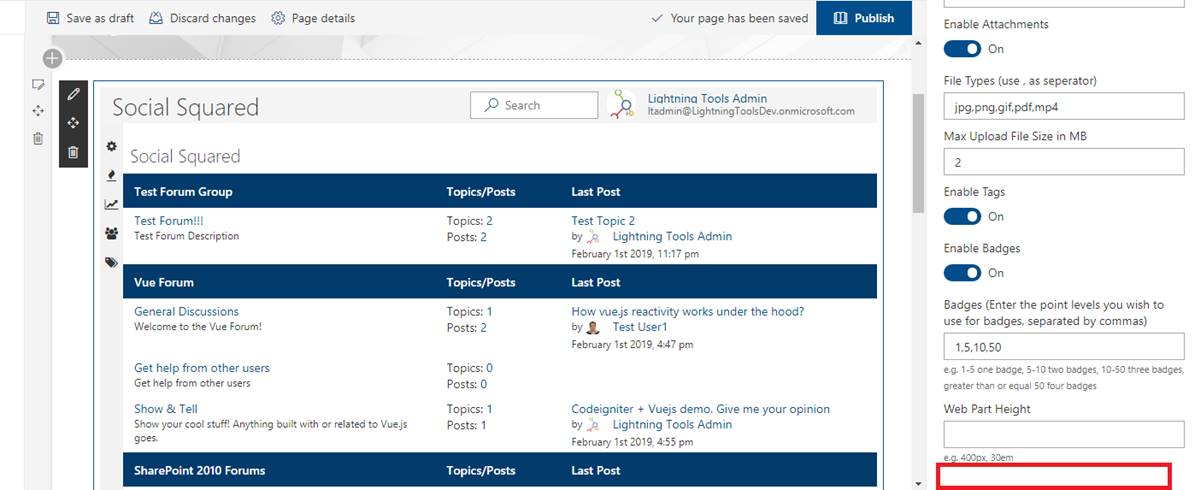

We defined some forums and topics.

Figure 2

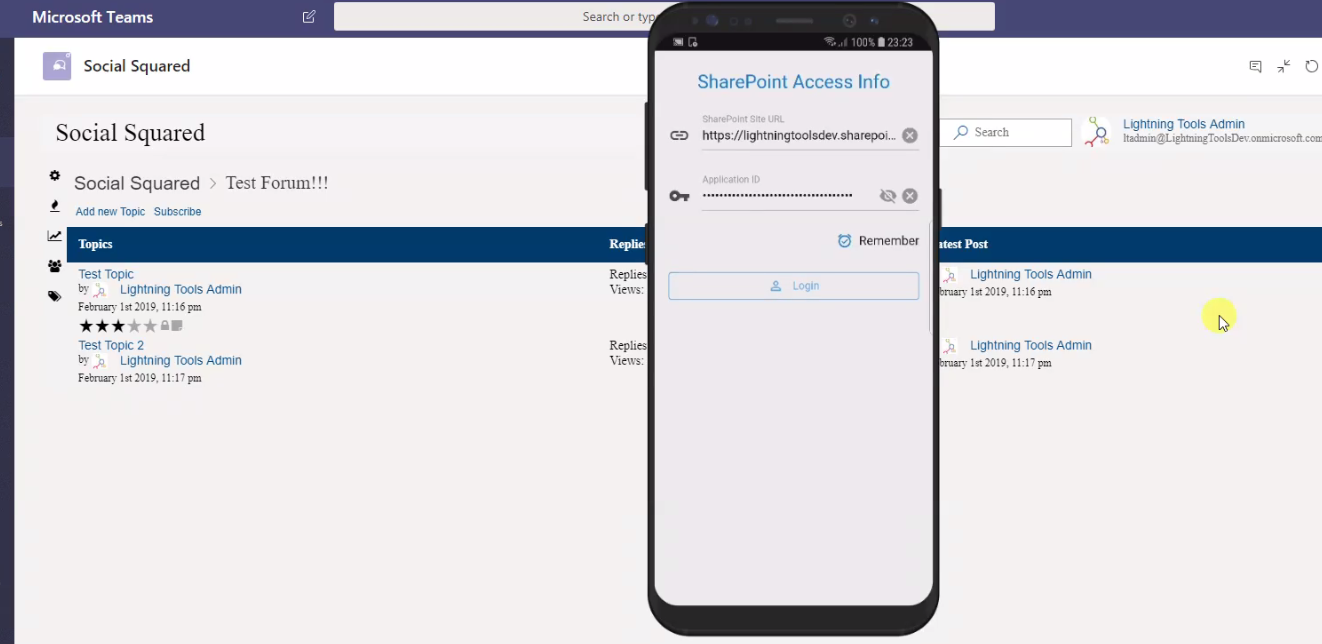

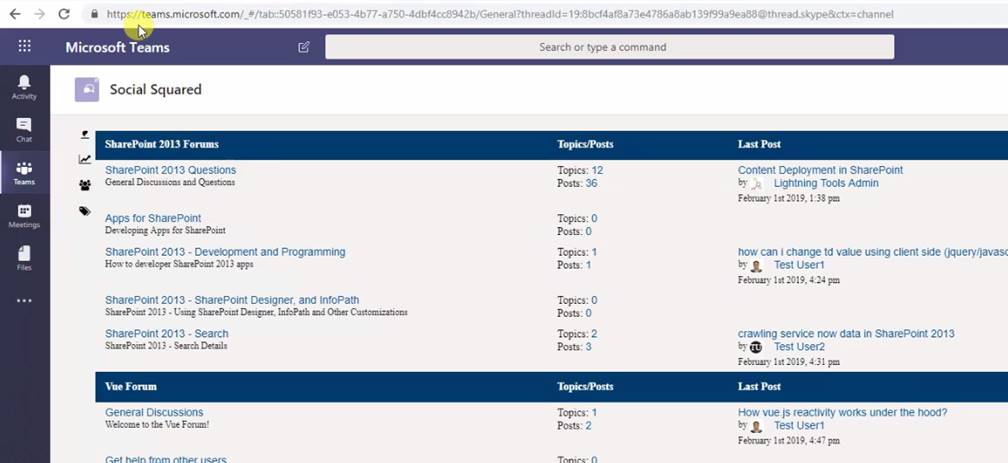

Our web part can also work in Microsoft Teams.

Figure 3

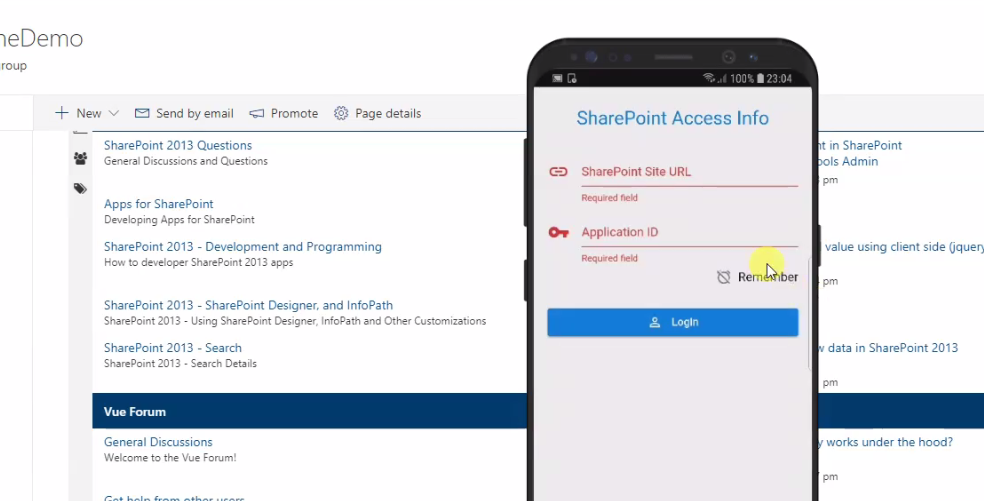

First thing that we should do in order to access the phone app is to specify SharePoint Site URL where the web part is hosted and registered app's application id.

Let's start from Application ID and for that we should register an application via Azure Active Directory.

Figure 4

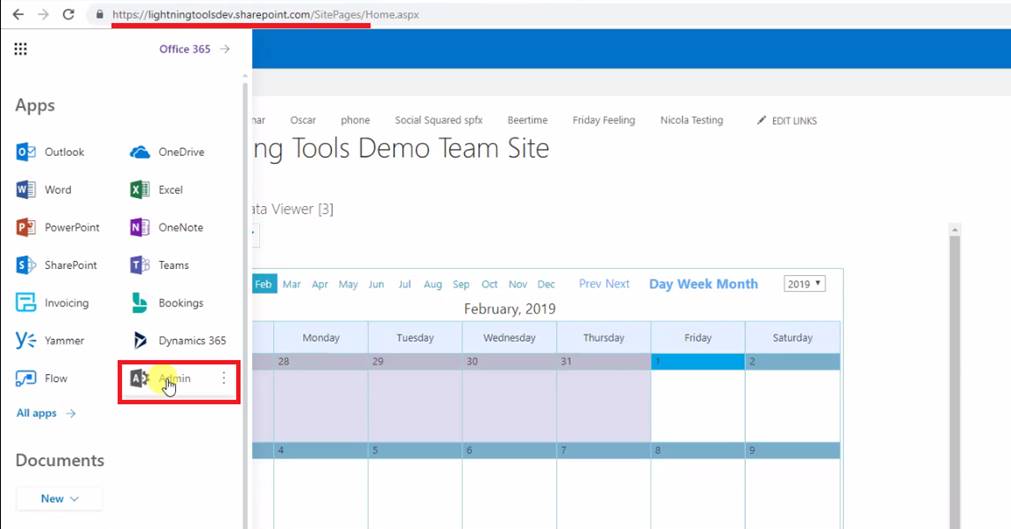

Navigate Admin area of the tenant.

Figure 5

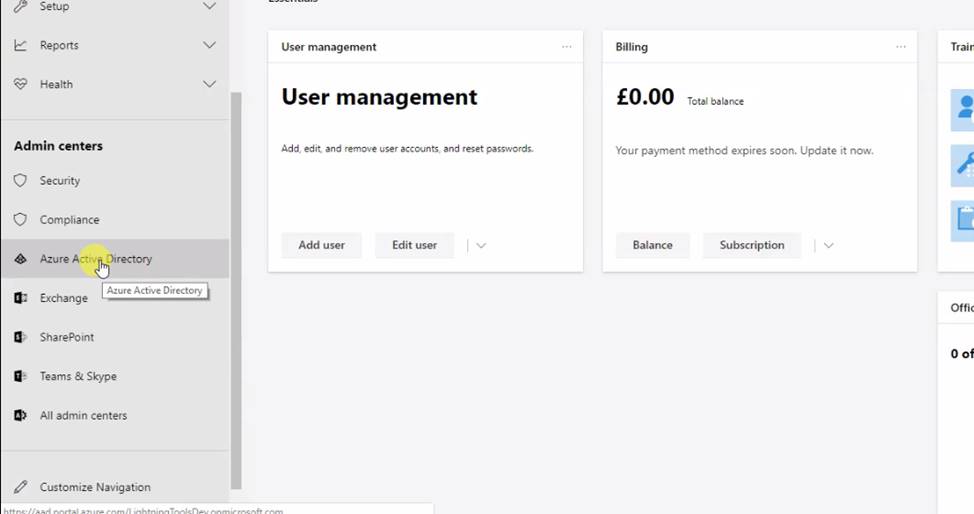

Select Azure Active Directory.

Figure 6

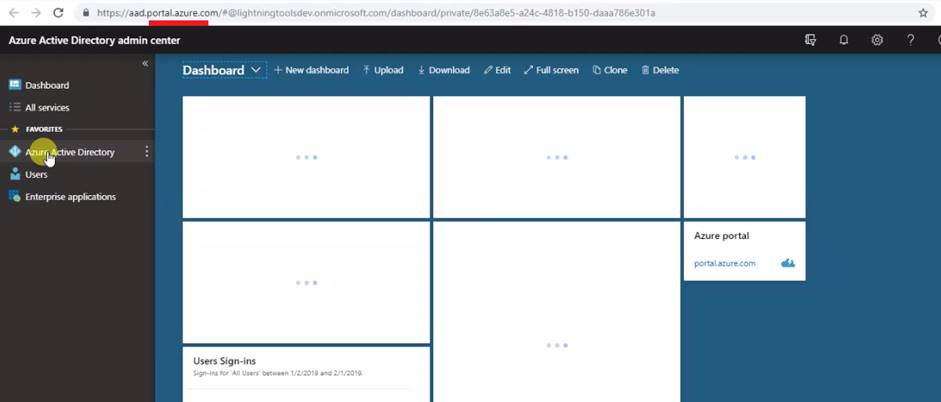

Select Azure Active Directory on azure portal this time.

Figure 7

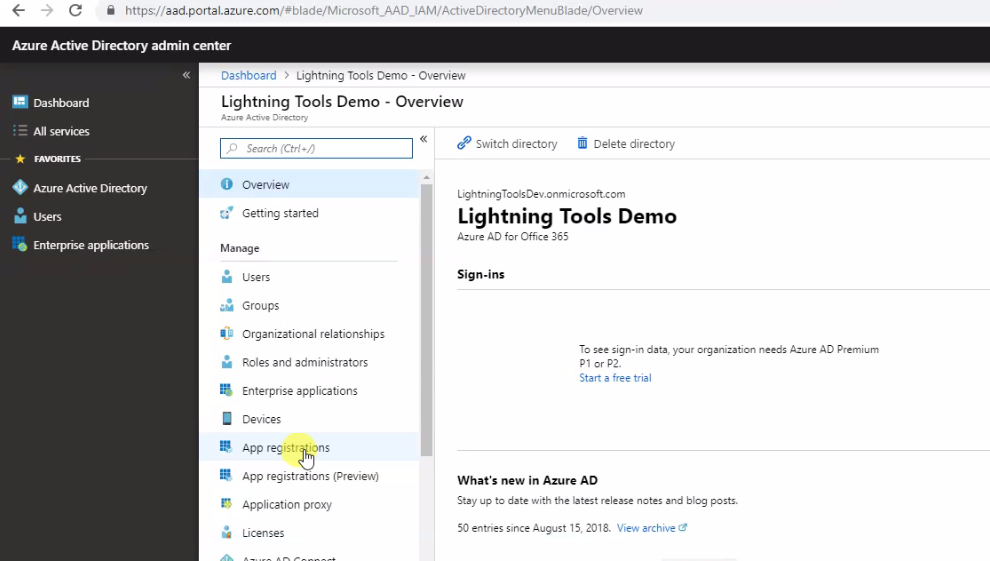

Click on App registration.

Figure 8

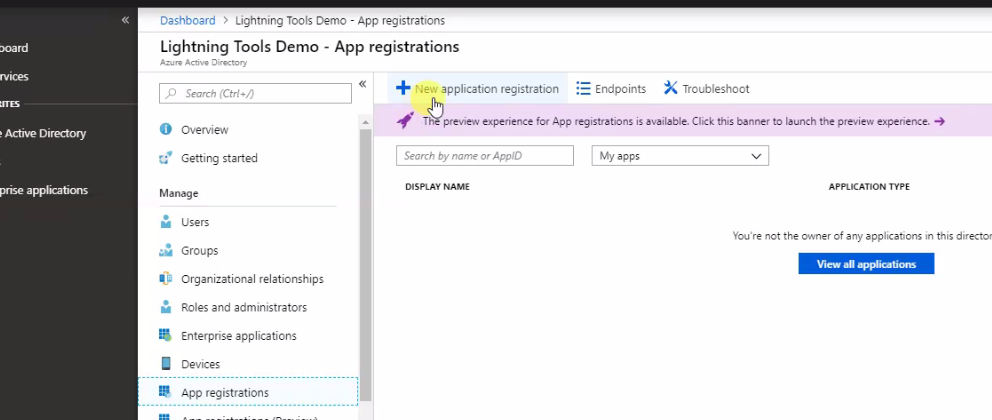

Click on New application registration.

Figure 9

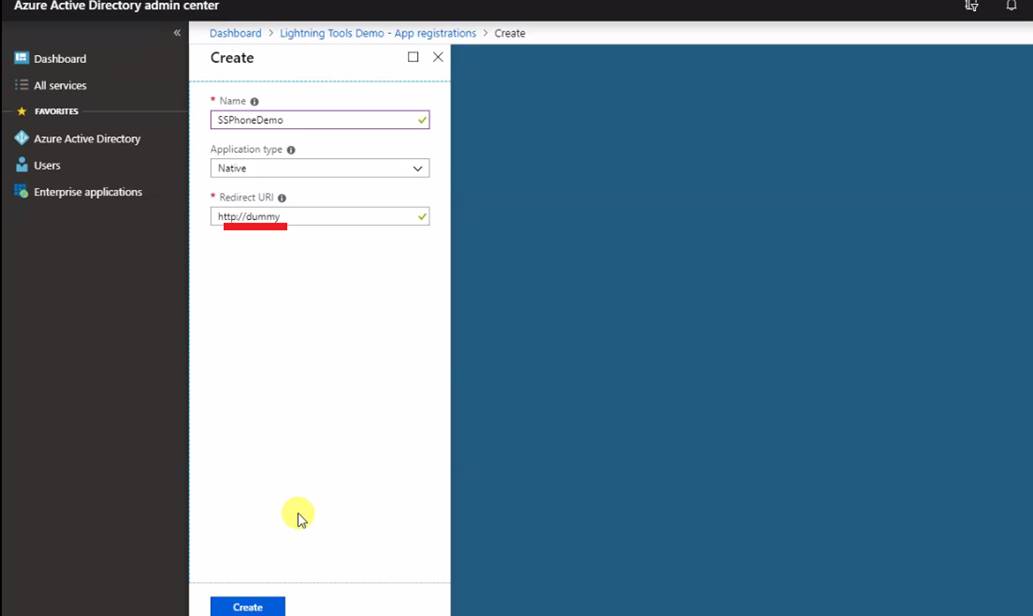

Now you specify Name, Application type and Redirect URI. Application type is Native and Redirect URI must be http://dummy

Figure 10

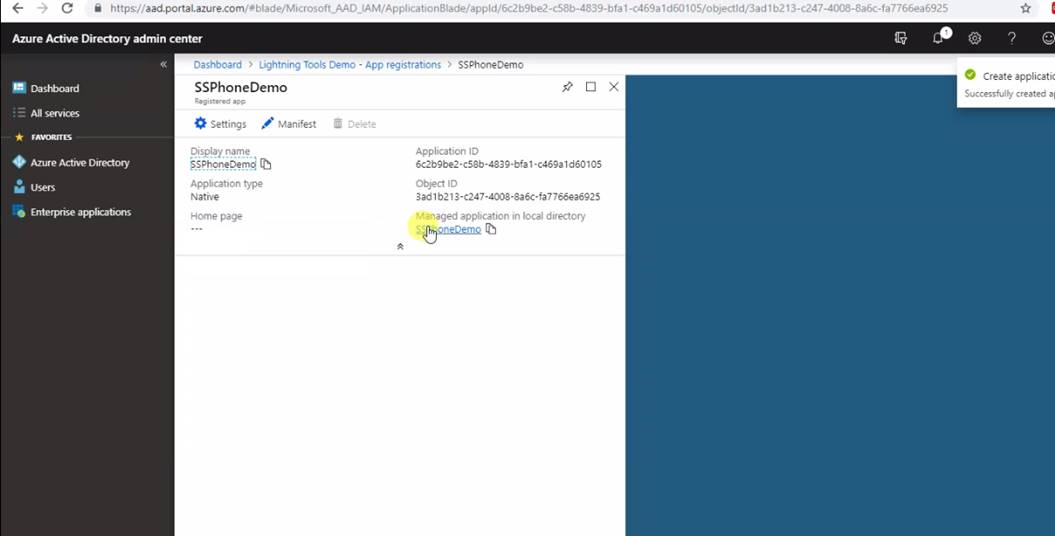

SSPhoneDemo native app was created.

Figure 11

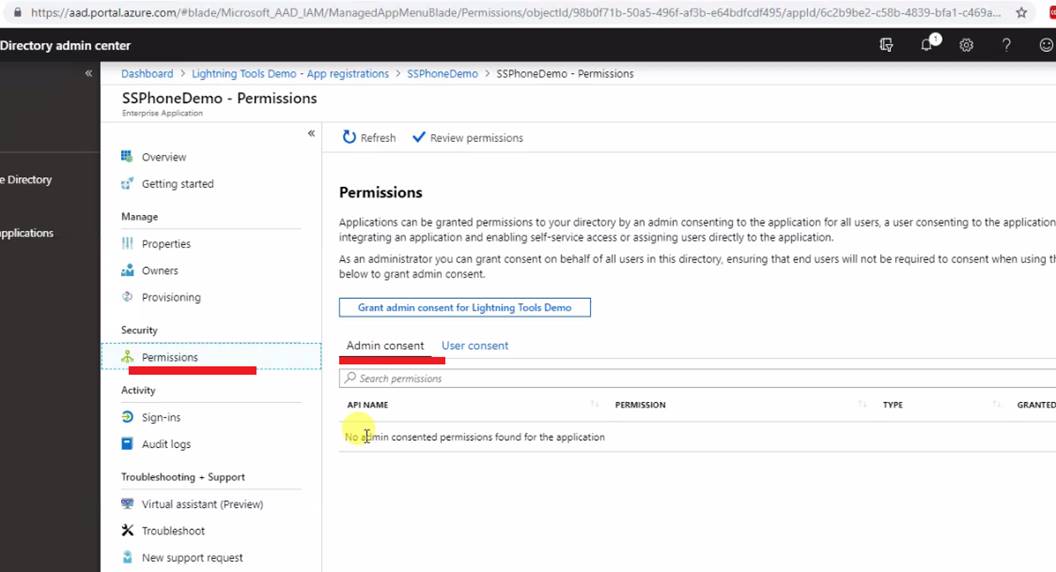

We can see that there are no admin consented permissions found for the application after the app creation.

Figure 12

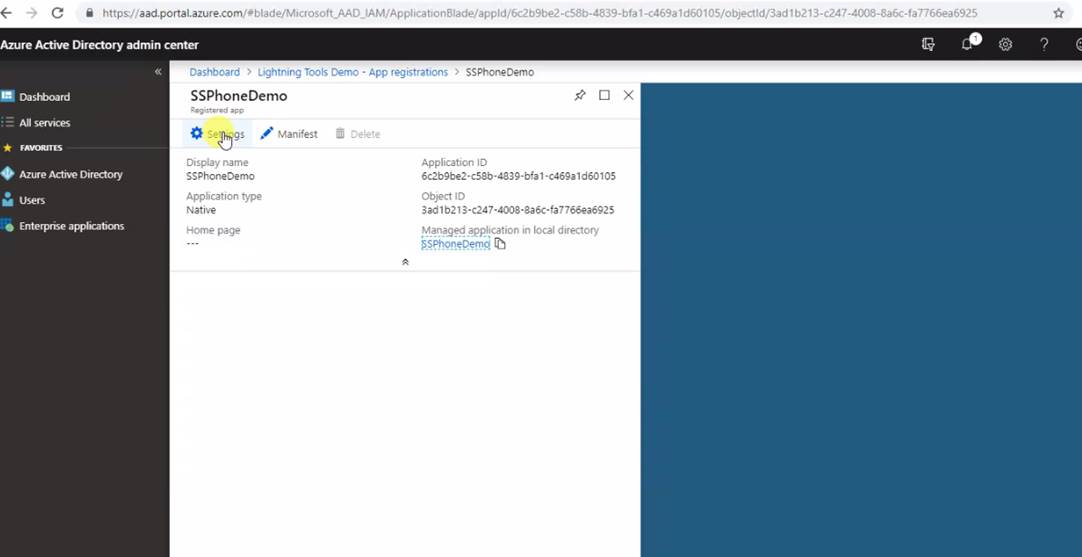

Navigate the settings page.

Figure 13

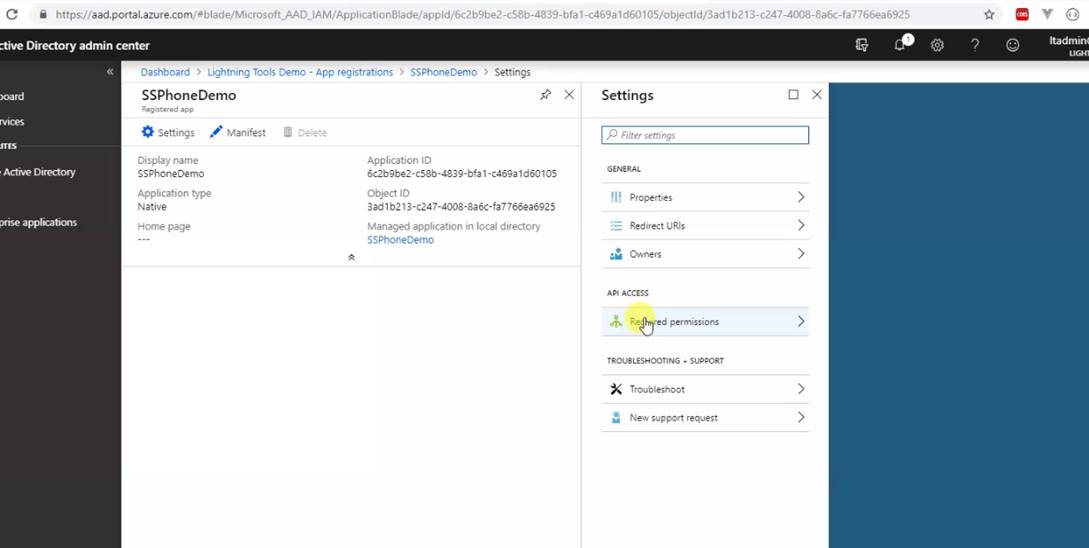

Select Required permissions

Figure 14

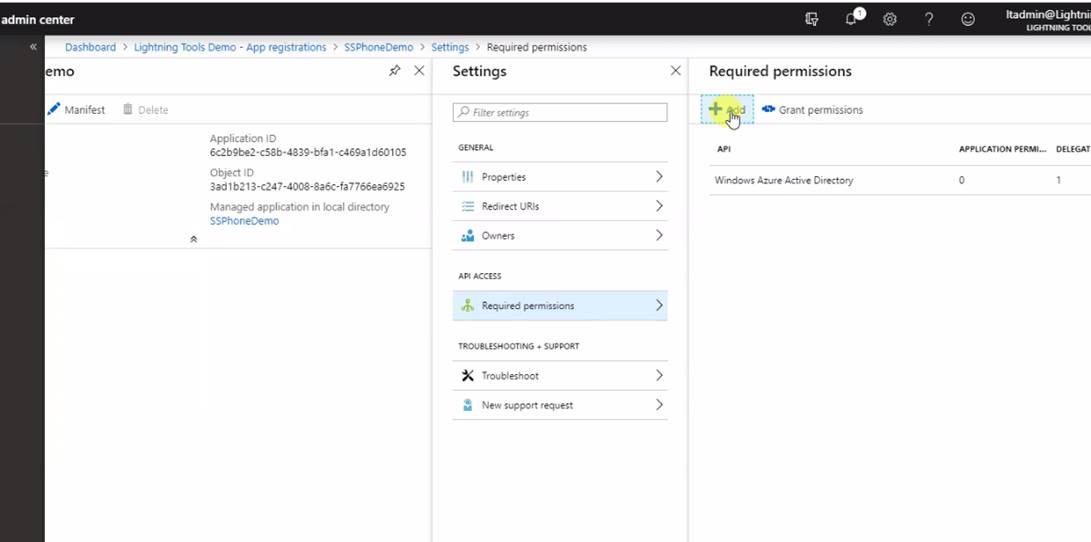

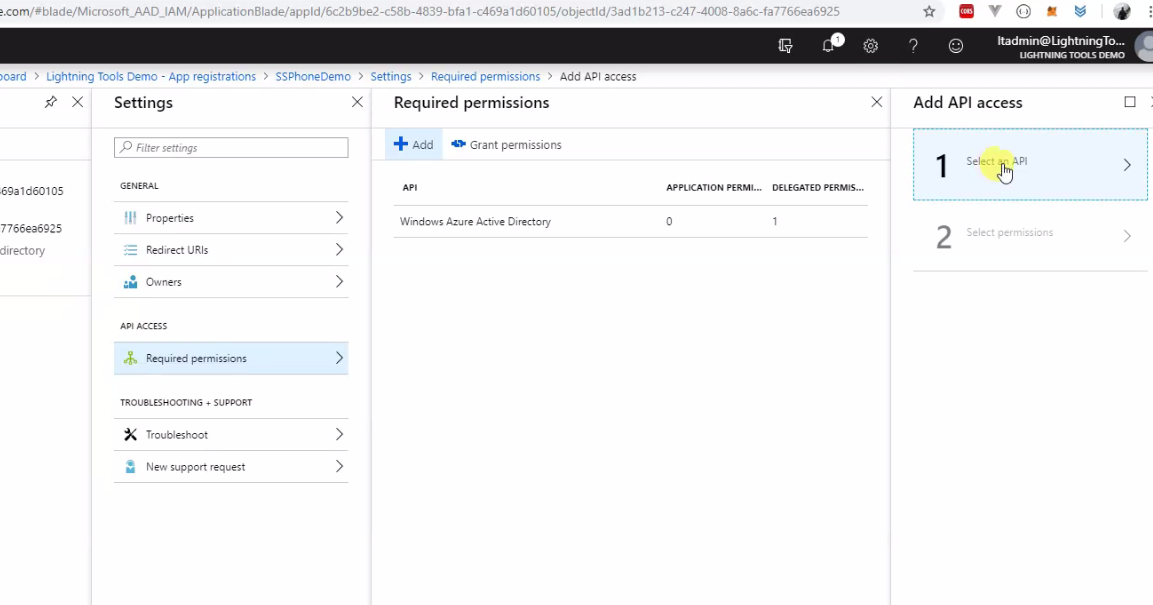

Click on Add.

Figure 15

Select an API

Figure 16

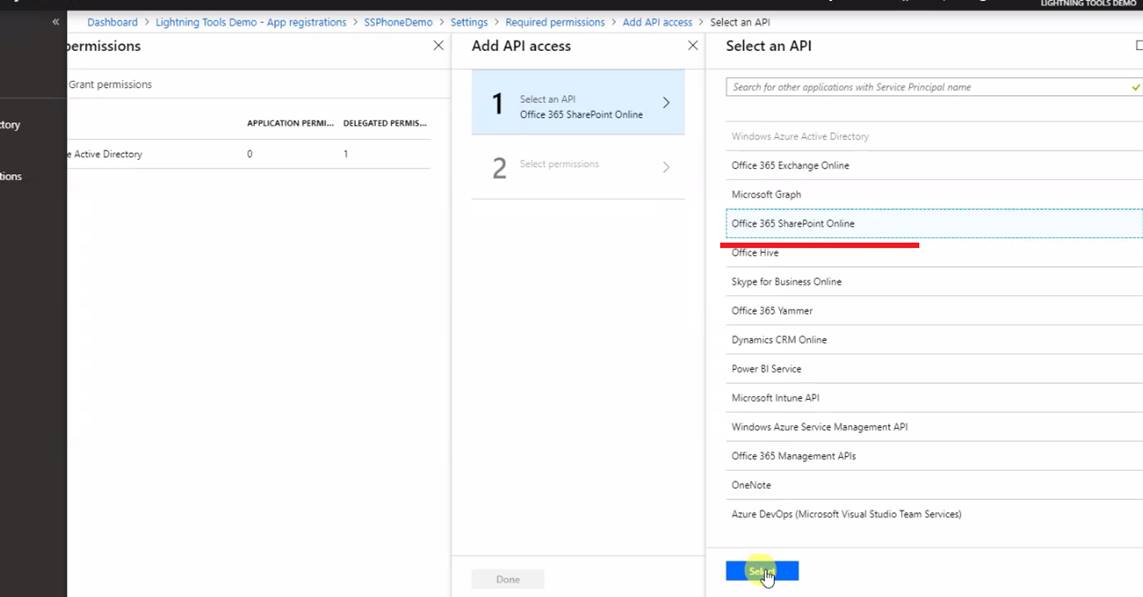

Select Office 365 SharePoint Online.

Figure 17

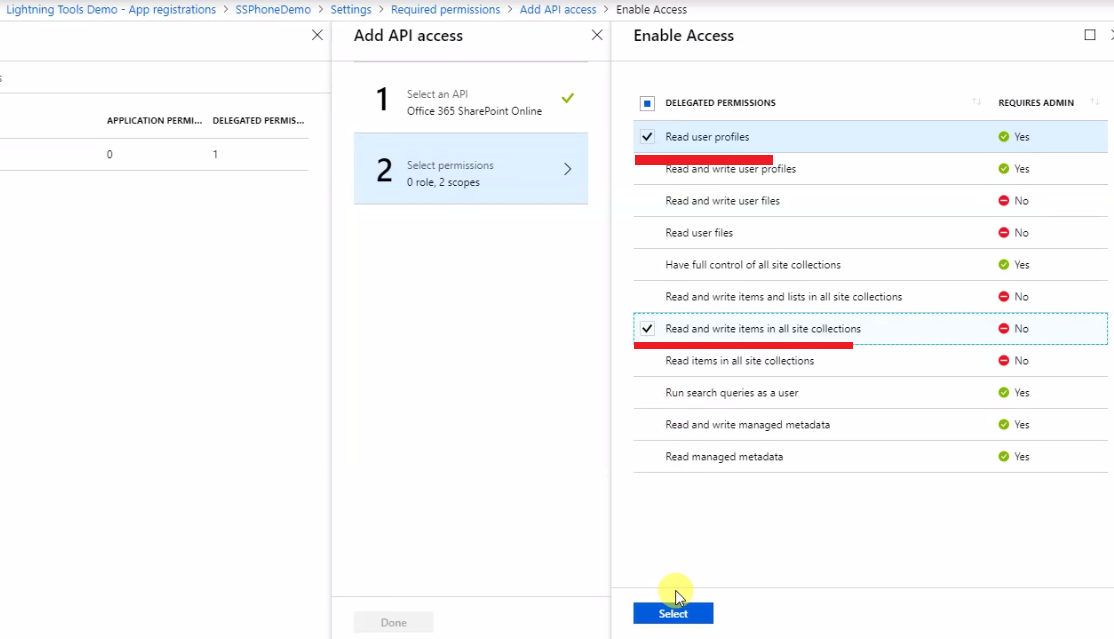

Select two permissions; Read user profiles and Read and write items in all site collections.

Figure 18

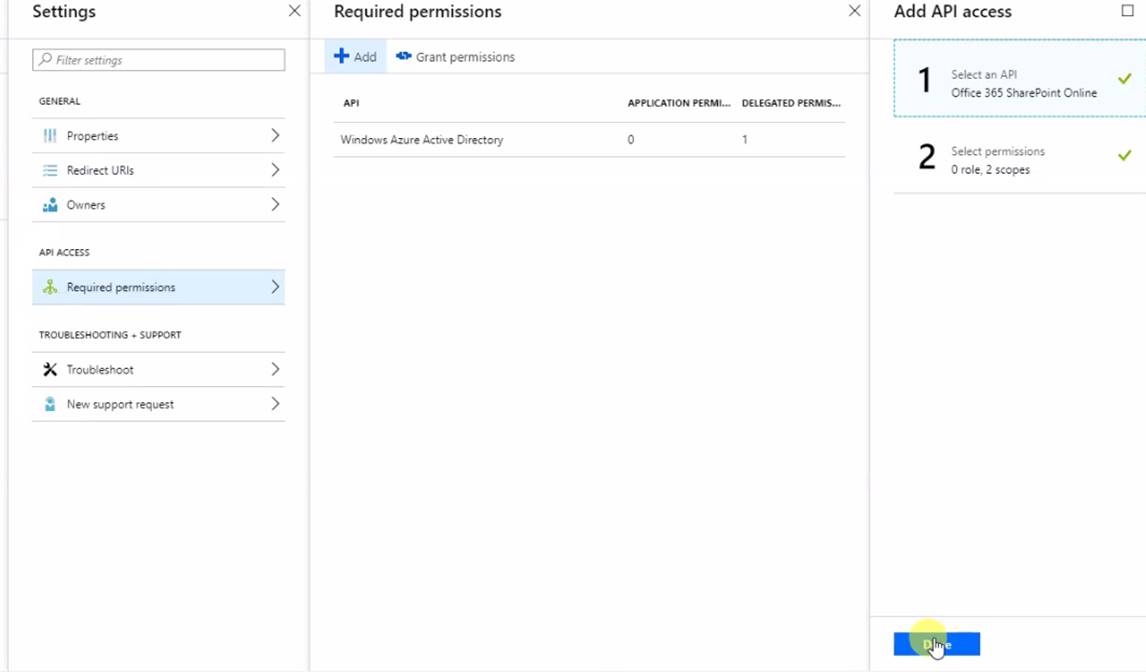

Click Done.

Figure 19

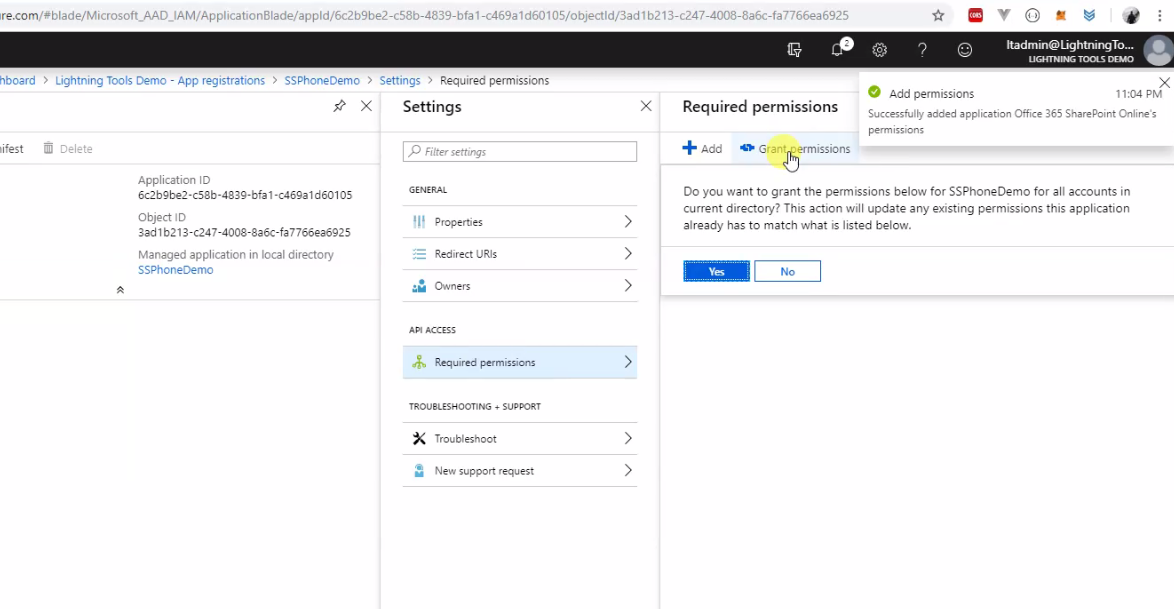

Grant Permissions.

Figure 20

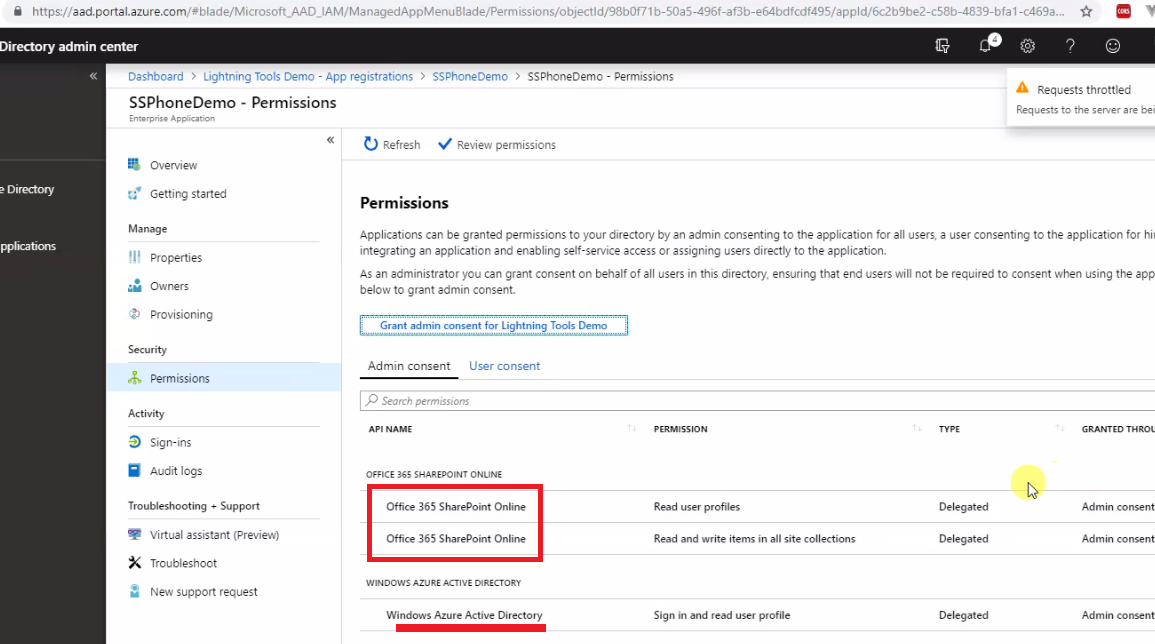

We see the specified permissions under Office 365 SharePoint Online and Sign in read user profile permission by default in Windows Azure Active Directory.

We leave that permission as it is as we must specify one permission anyway. As an administrator you can grant consent on behalf of all users

in this directory, ensuring that users will not be required to consent when using the application.

Figure 21

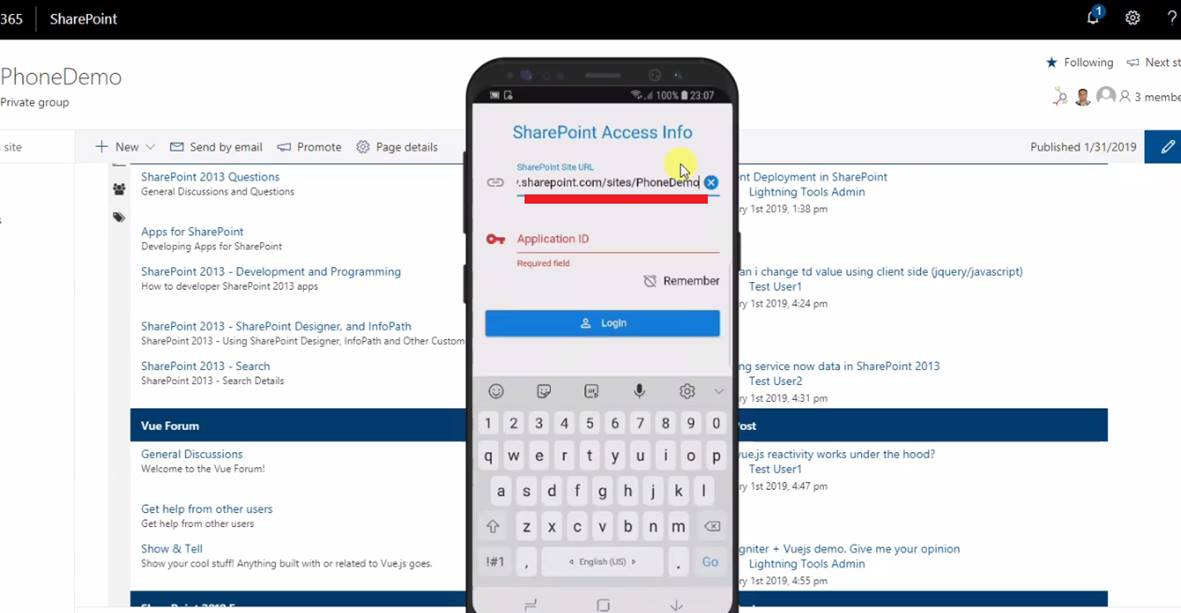

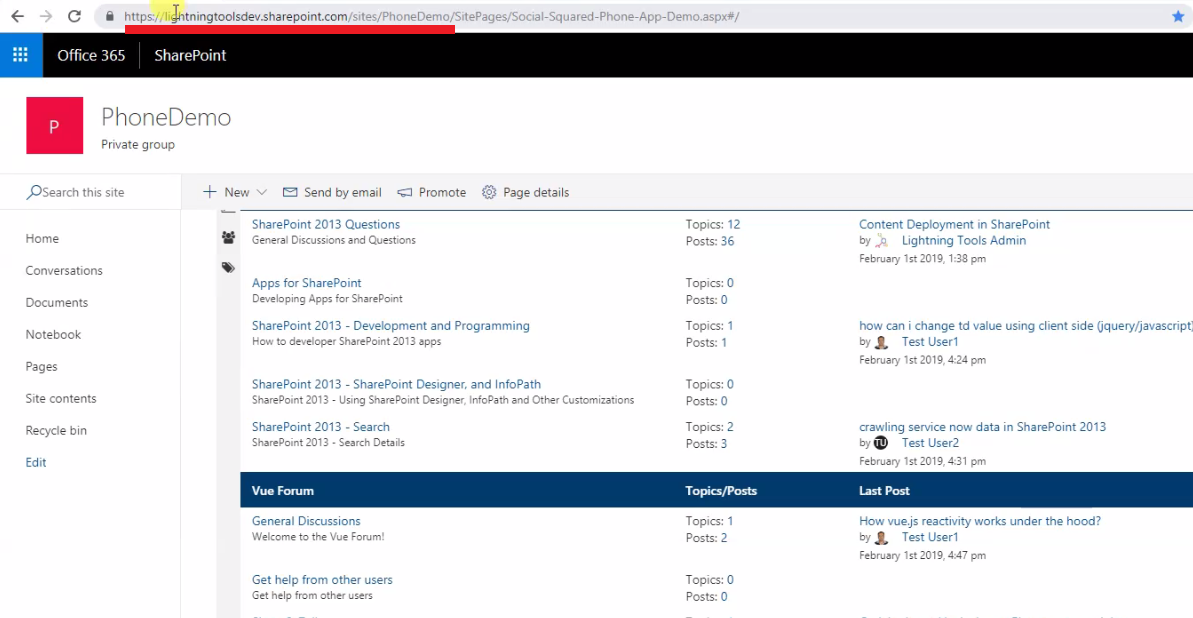

Now, it is time to run our phone app. SharePoint site URL (Figure 3) was the first thing to input and it is https://lightningtoolsdev.sharepoint.com/sites/PhoneDemo

in our case.

Figure 22

Set the value.

Figure 23

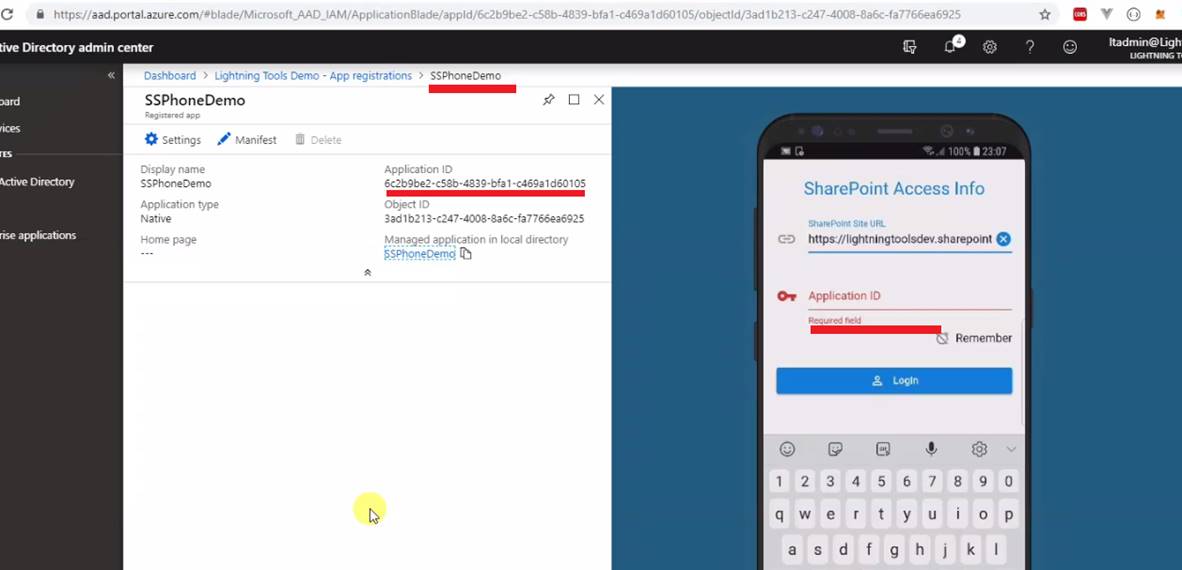

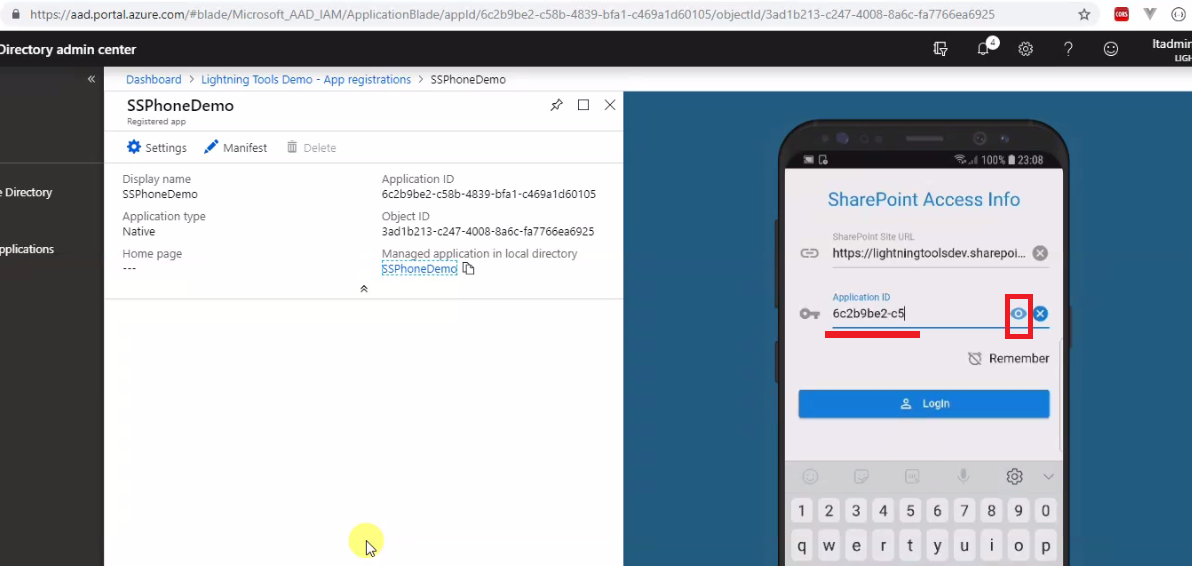

Application ID is the app id for newly created SSPhoneDemo application.

Figure 24

Note, Application ID input field can either hide or show the characters entered by the user via clickable icon to toggle the input.

Social Squared SPFx will define a new text field for Application ID so the phone app users can get it from there.

Figure 25

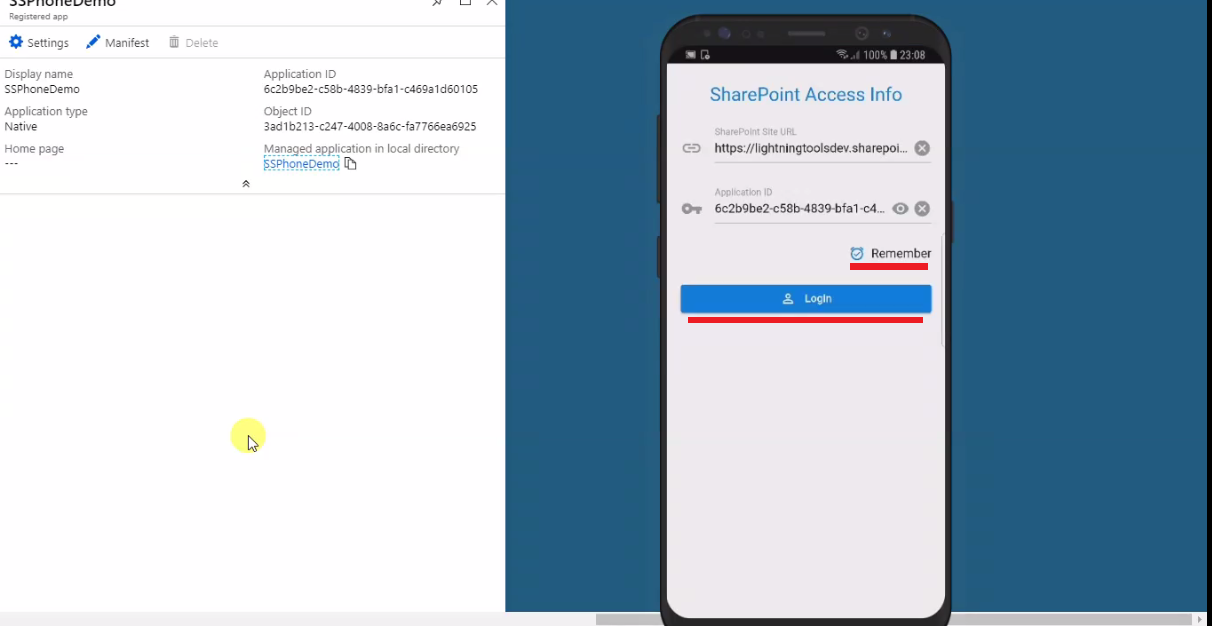

Remember option persists user's settings and no need to specify them again each time the app is launched.

Each time you change a character in any of the input fields the remember option is grayed out which means that the settings will not be persisted.

Make sure to check remember option after changing an input character.

Figure 26

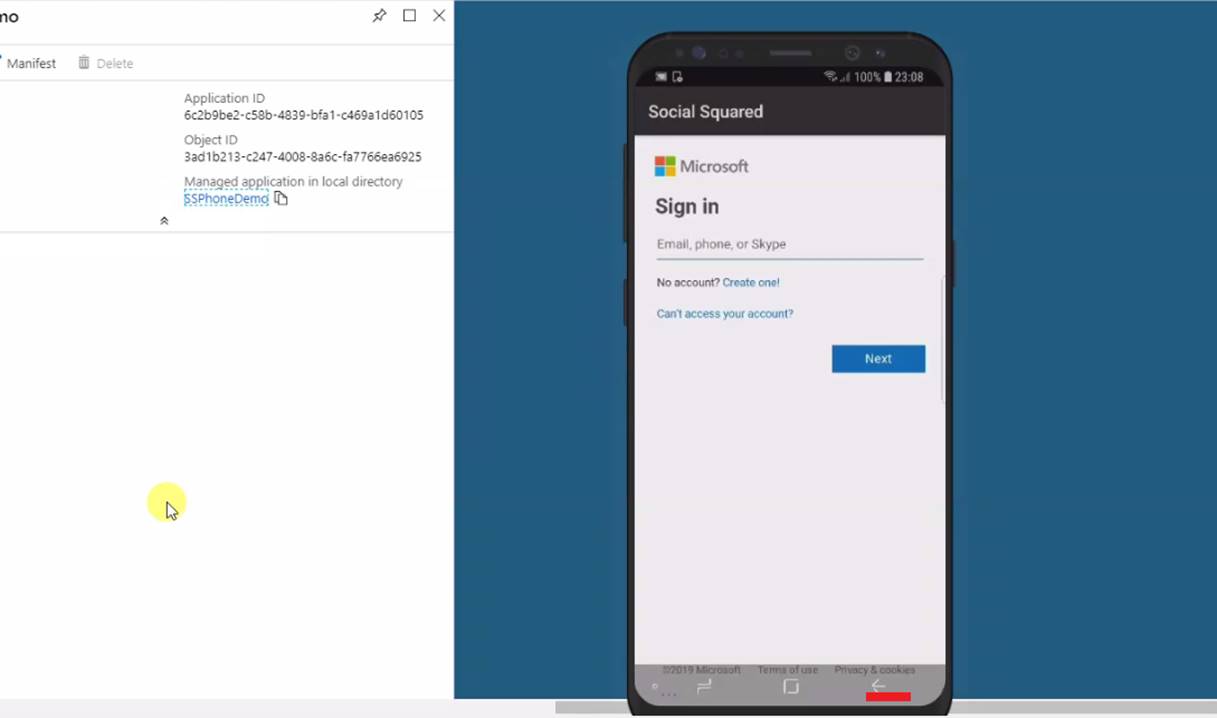

You are navigated to Microsoft's Sign In page. Let's go back this time.

Figure 27

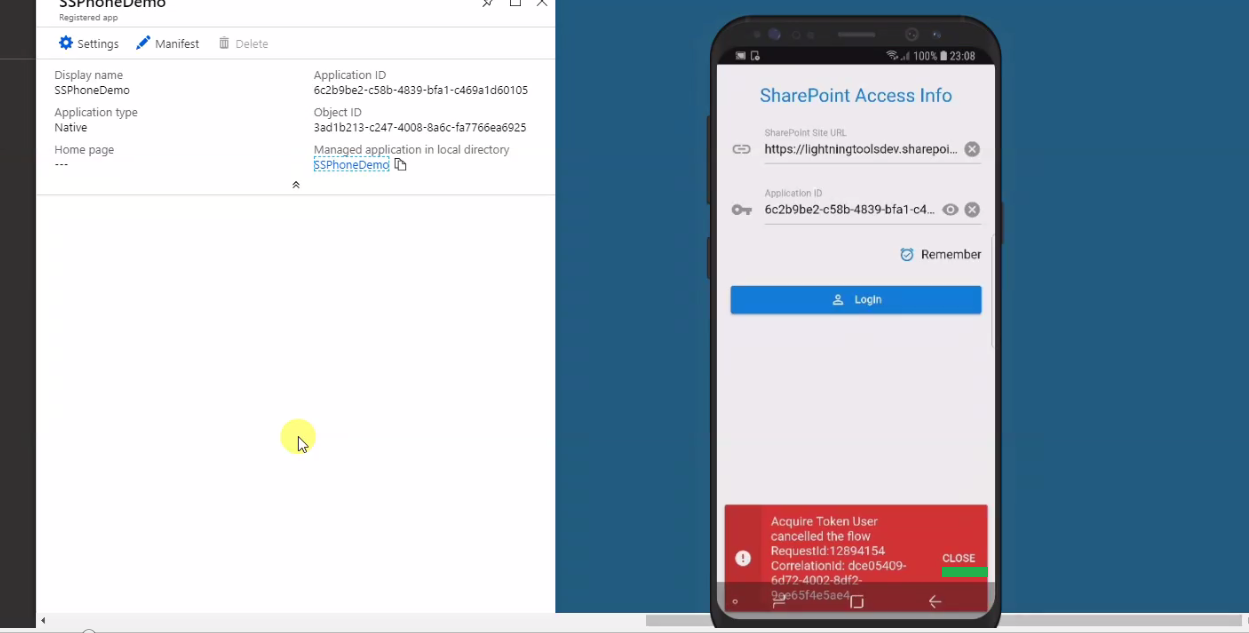

The error message is Acquire Token User cancelled the flow. That is because we decided to go back instead of login. This is how errors are displayed and you have

to explicitly dismiss the alert by tapping close.

Figure 28

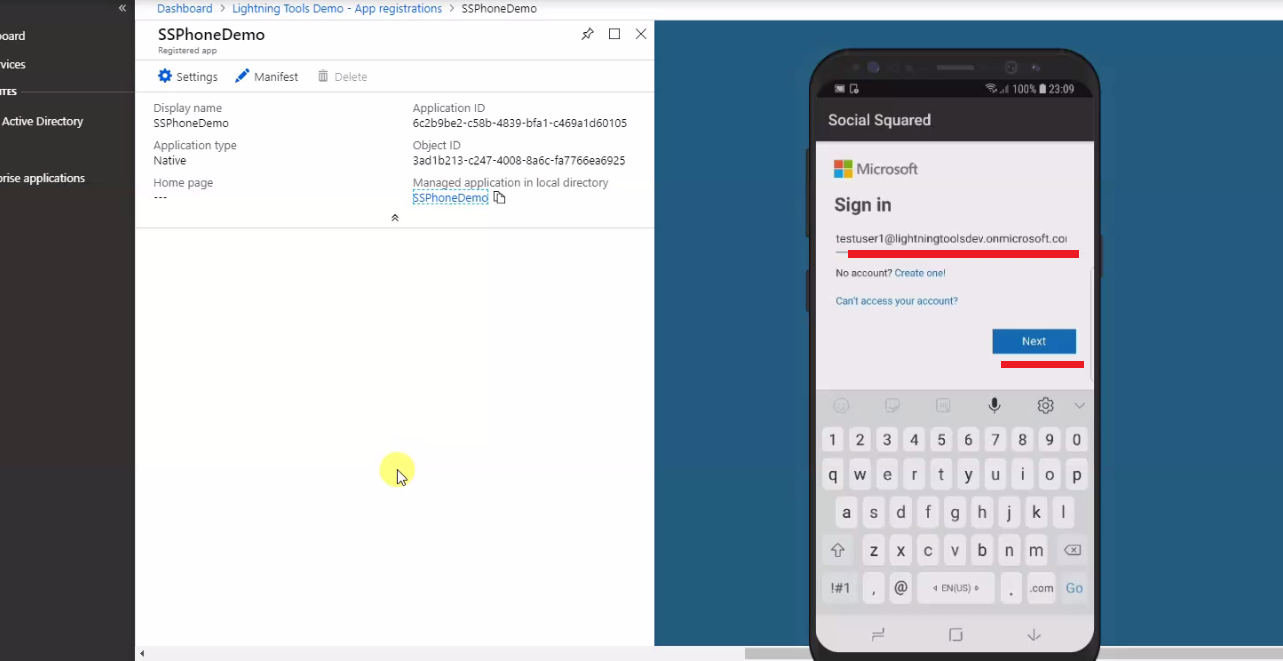

Set your email and tap Next.

Figure 29

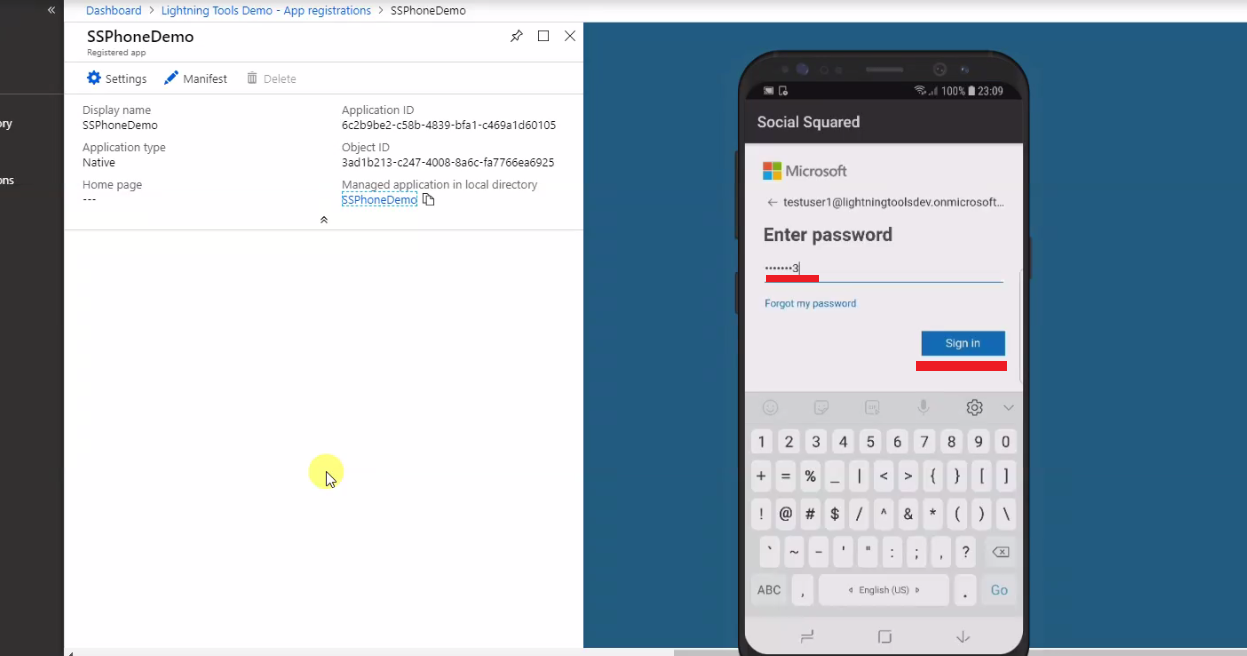

Enter password and Sign In.

Figure 30

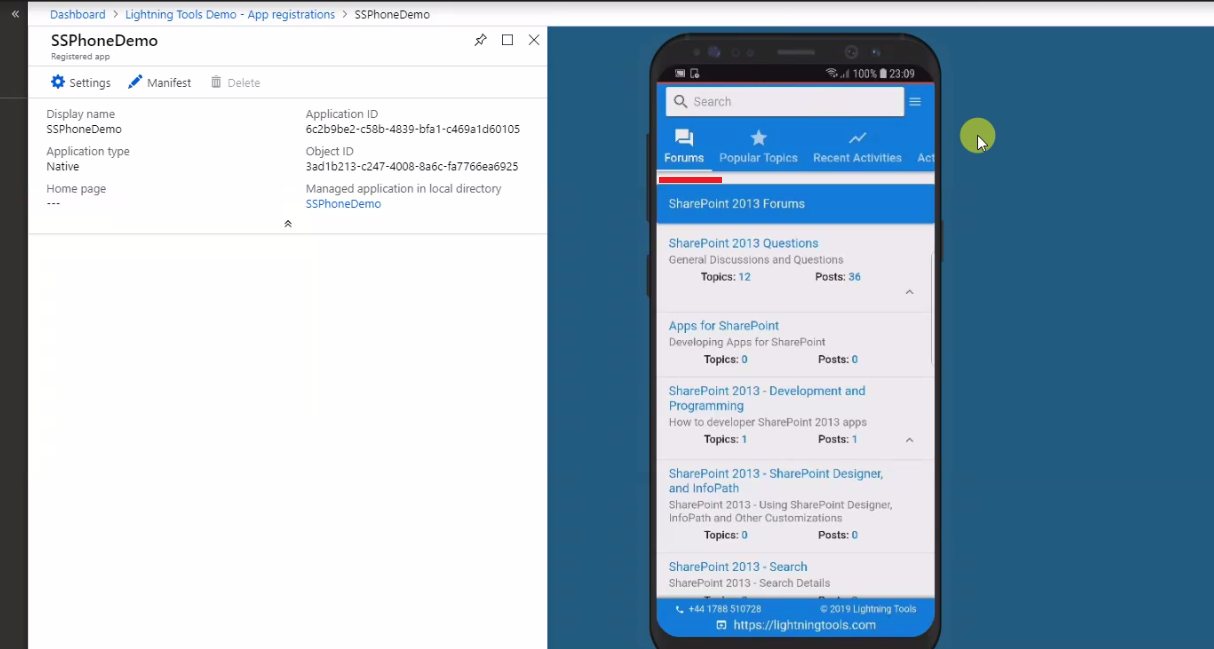

A user redirected to forums page after Sign in. Forums is the first tab.

Figure 31

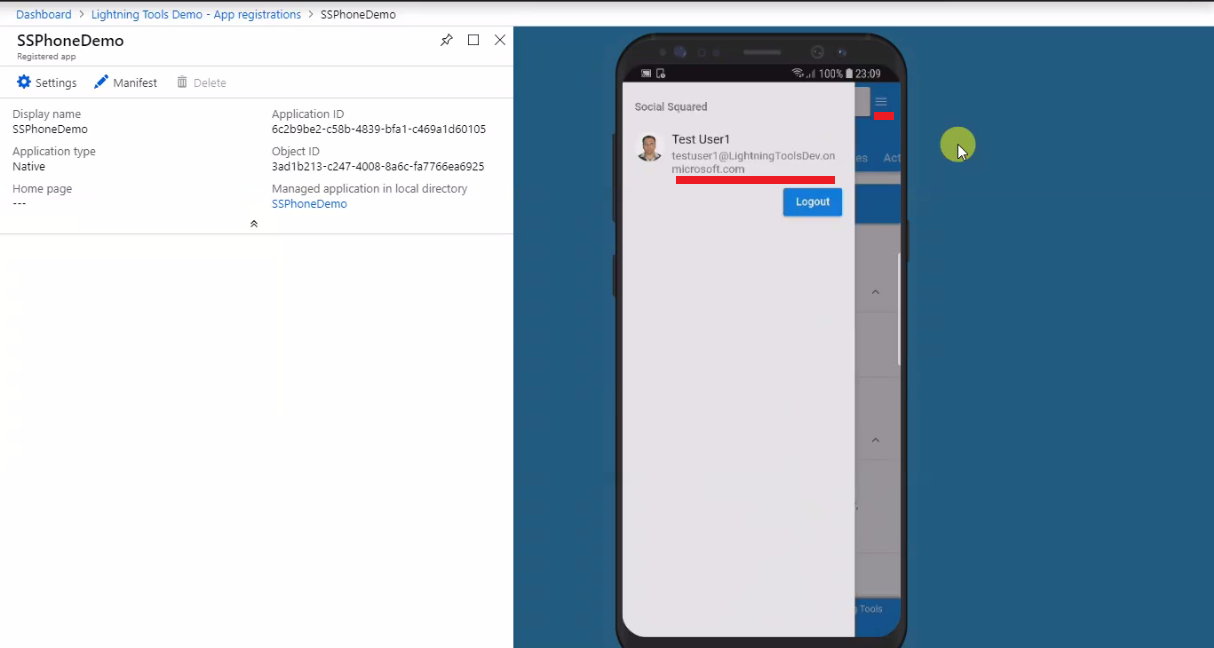

Tab menu icon located on right-top corner to bring up user's profile panel.

Figure 32

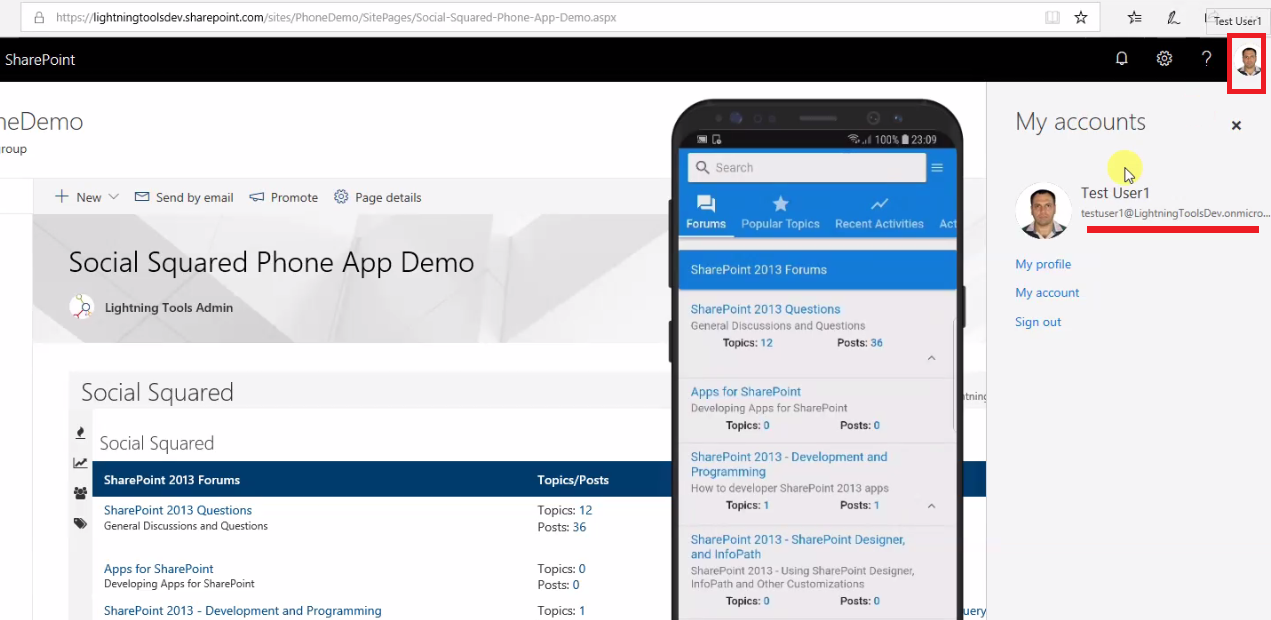

That is the same info on Office 365 My accounts panel.

Figure 33

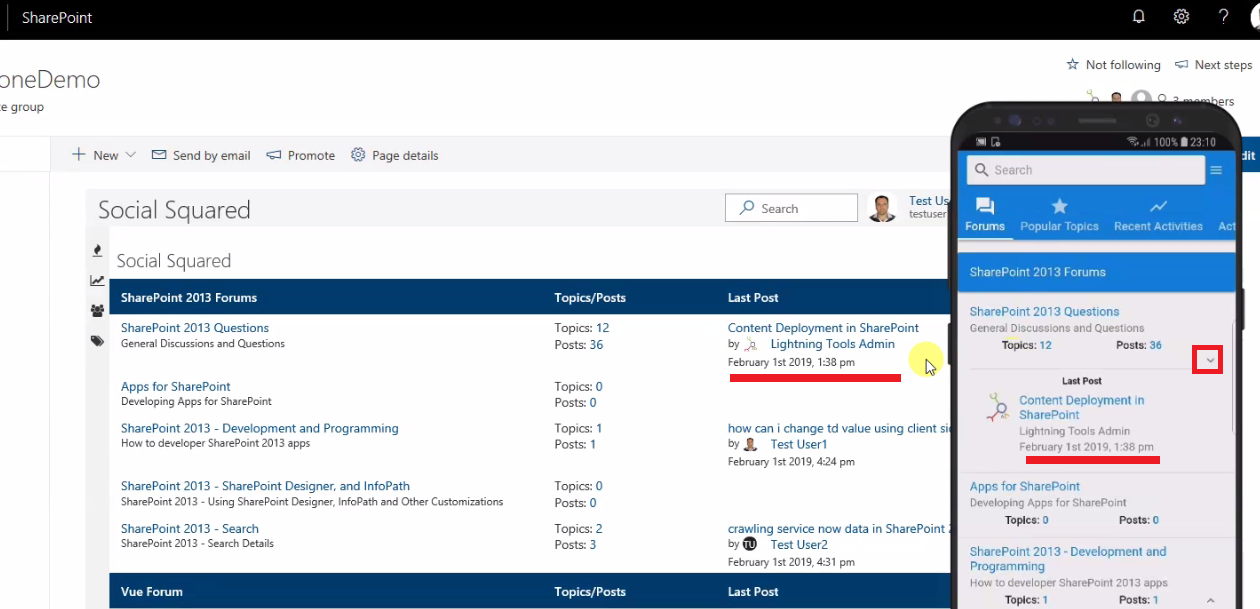

Forum's Last Post section is not expanded by default on the phone app. A user can either expand or collapse it by tapping the arrow. Only one

section can be expanded at a time and previously opened section will collapse.

Figure 34

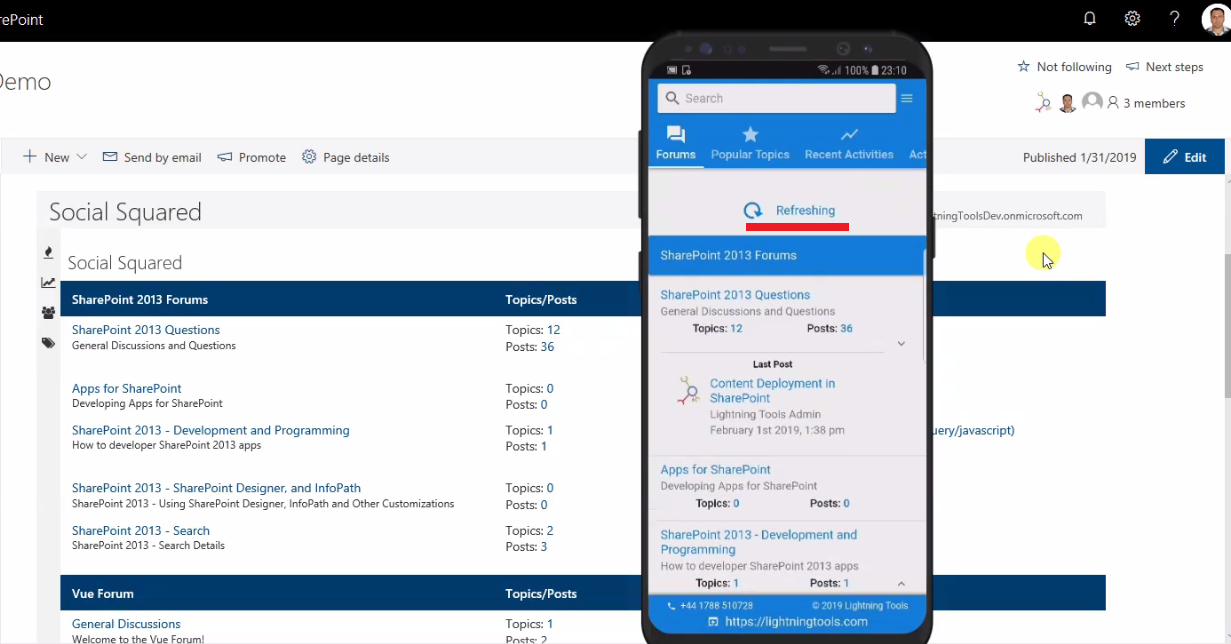

Pull to refresh the page and forums will be loaded from the server.

Figure 35

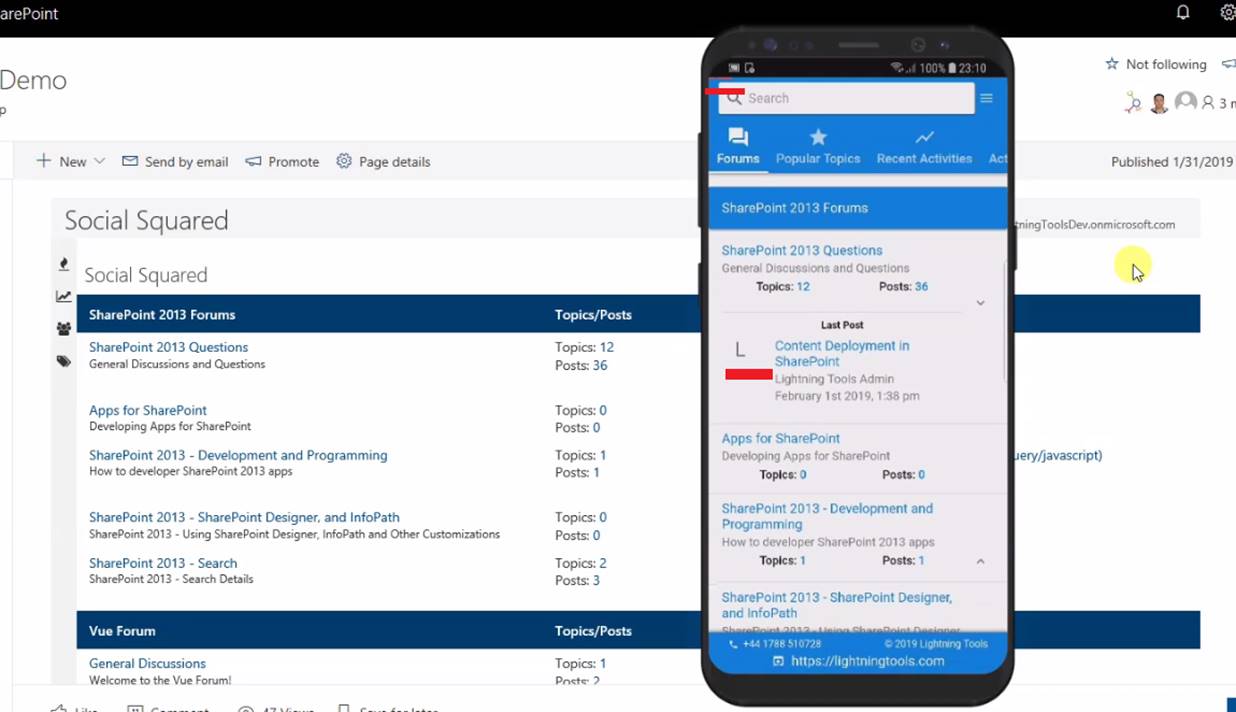

When data are retrieved form the server then a loading bar (like YouTube) is displayed telling the user that there is an Ajax call in progress. What we do first

is loading forums from the server and after that load pictures asynchronously. This means that users may first see the forum's creator initial letter capitalized

(e.g. L for Lightning Tools admin, T for Test user2) then the actual picture.

Figure 36

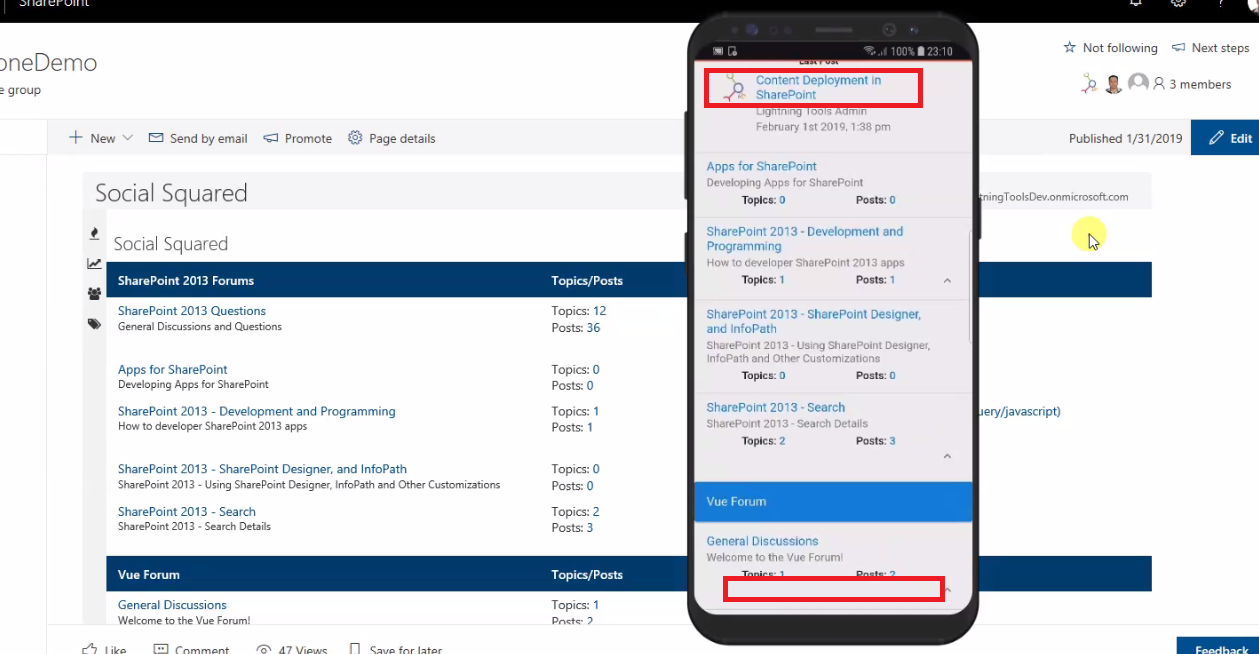

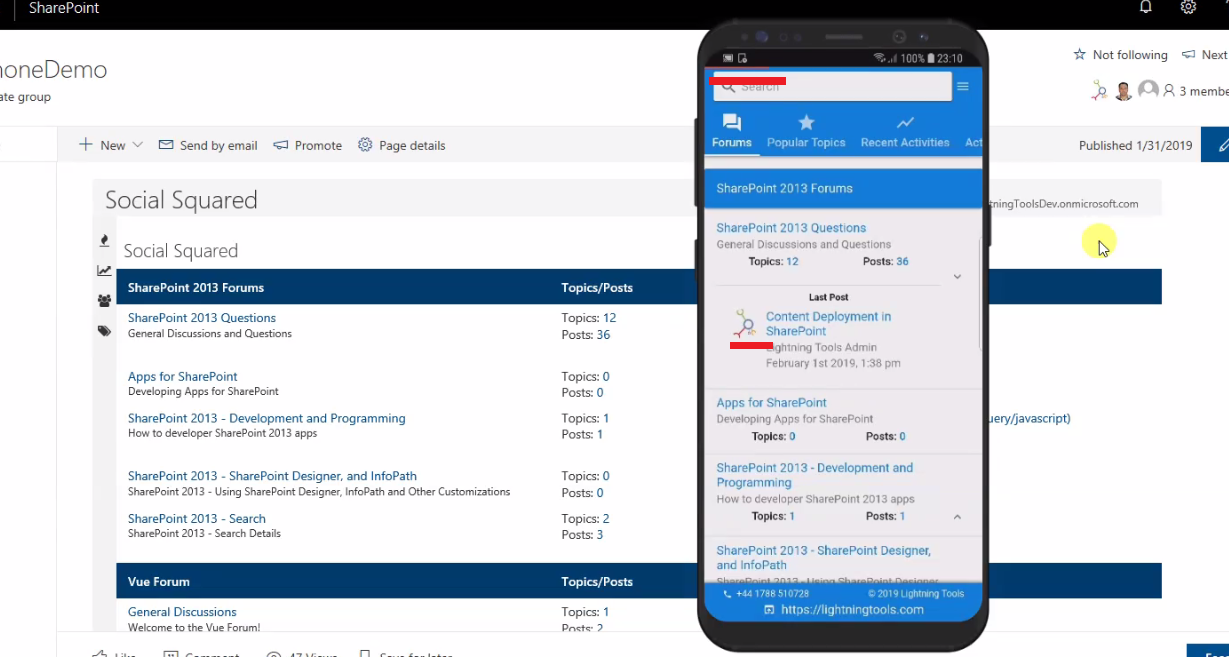

Forums are loaded, last poster's picture is loaded too but red loading line is not complete. This means that other last posters' pictures are still loading.

Loading pictures after the forums is convenient as a user can go through the forums while pictures are loading.

Figure 37

Both header and footer are collapsed (similar to LinkedIn native app) while scrolling up the page (compare to Figure 36). This is good mobile experience as there is more room to breathe.

Figure 38

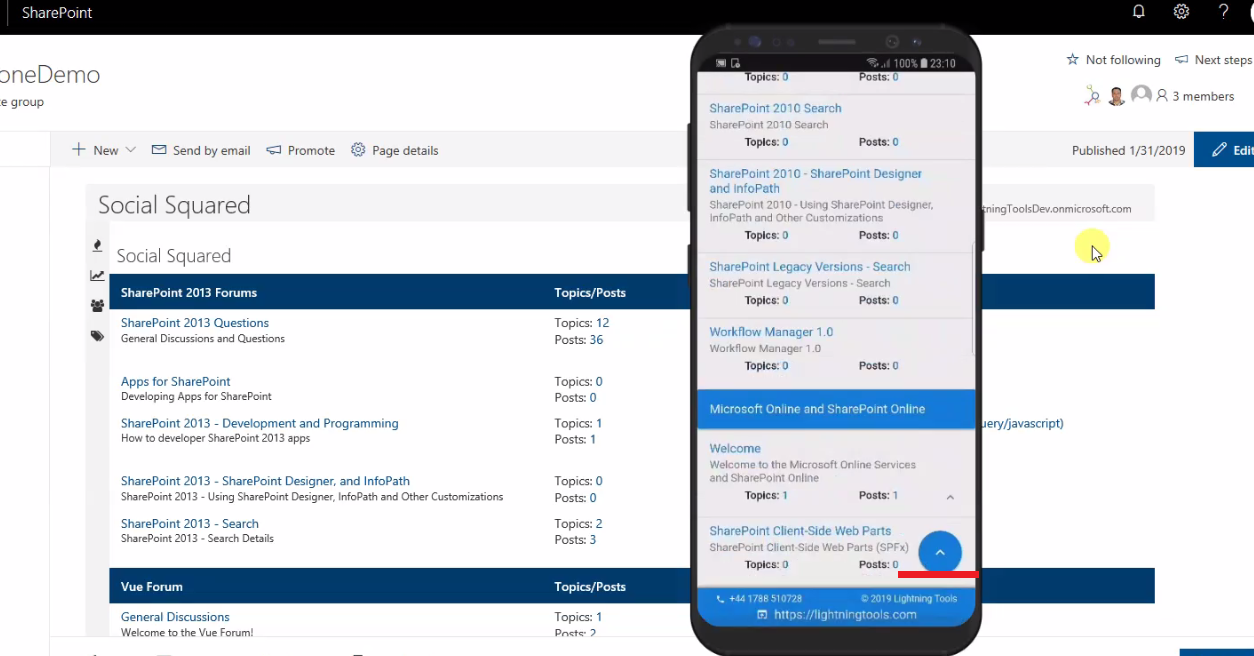

Forums' back to top button allows users to smoothly scroll back to the top of the page.

Figure 39

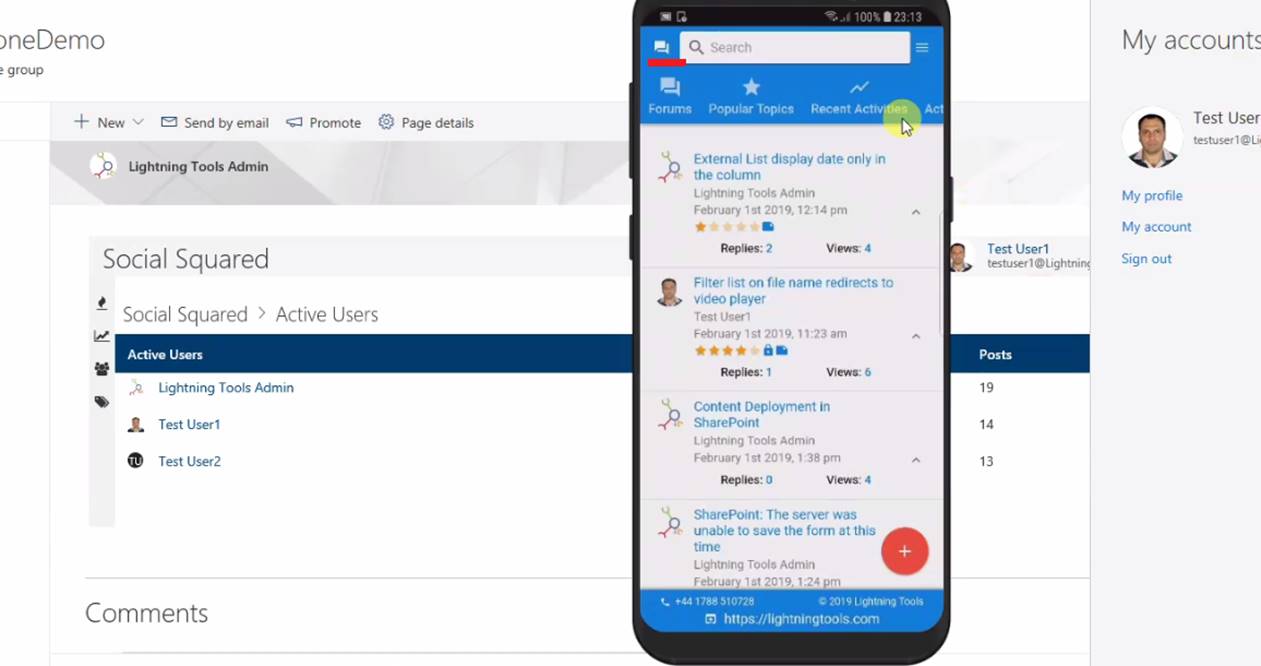

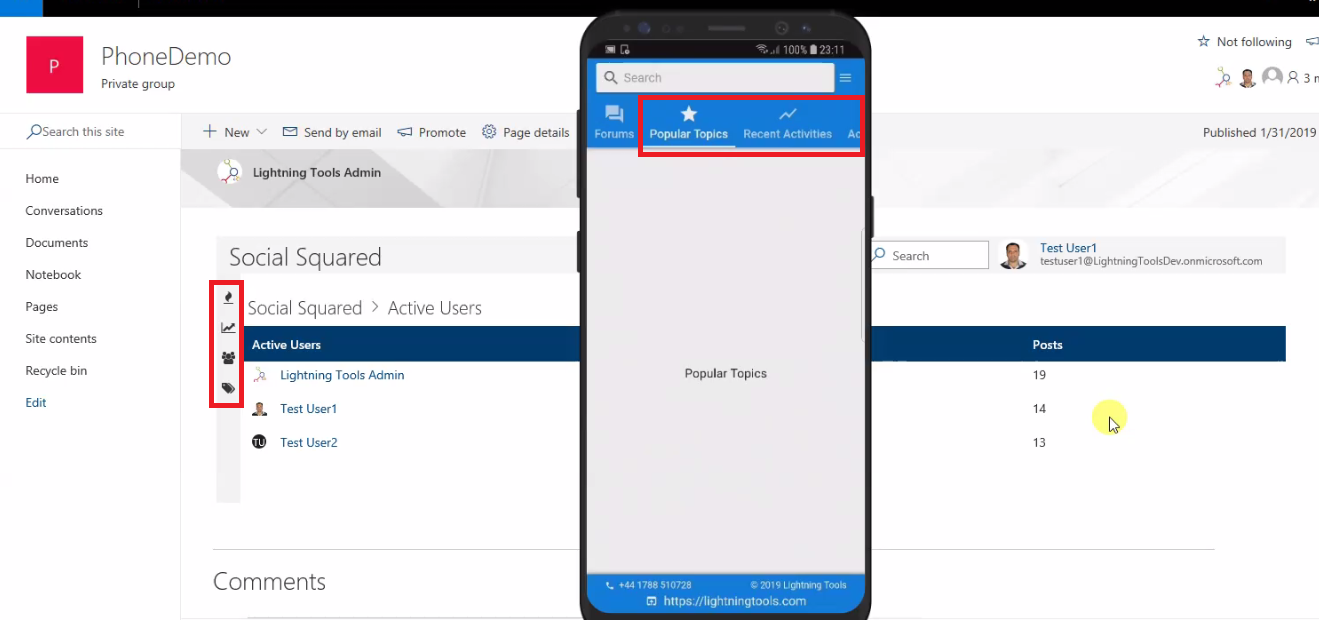

A user can navigate to other pages to view Popular Topics, Recent Activities etc. by means of Social Squared SPFx sidebar icons. Phone app renders them as tabs.

Figure 40

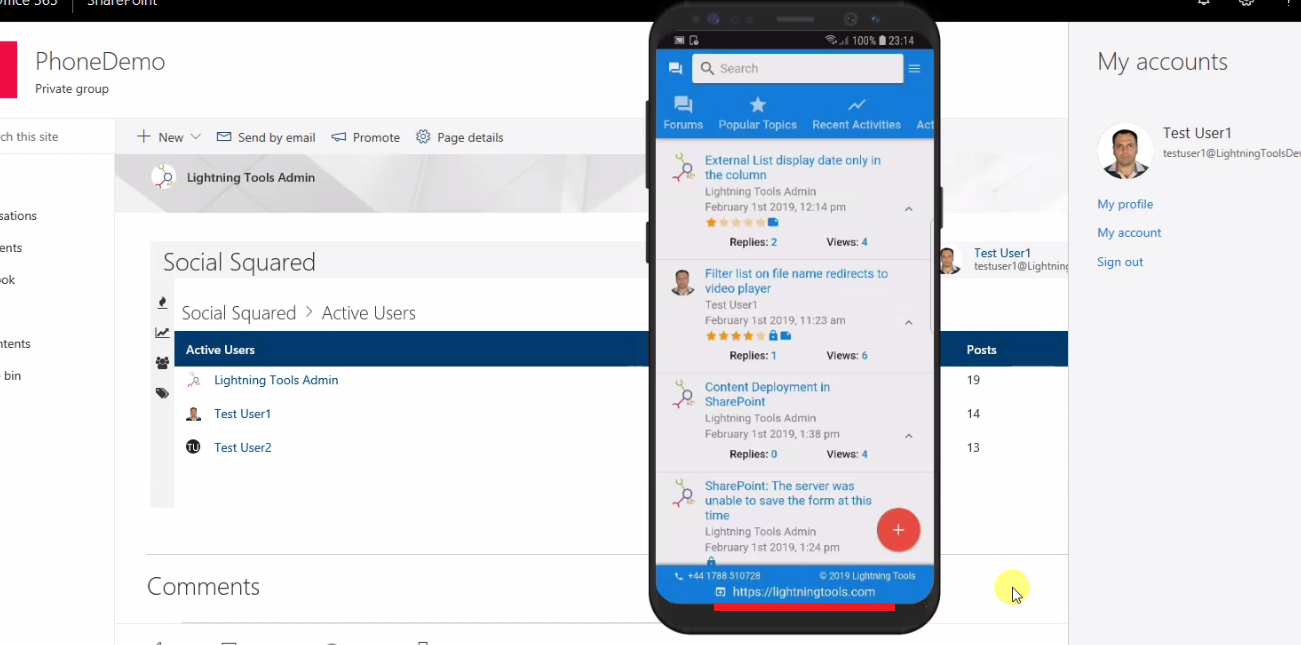

We navigated from forums to topics page. It functions like forums page. Not all pictures have been loaded yet. There are still in progress.

Figure 41

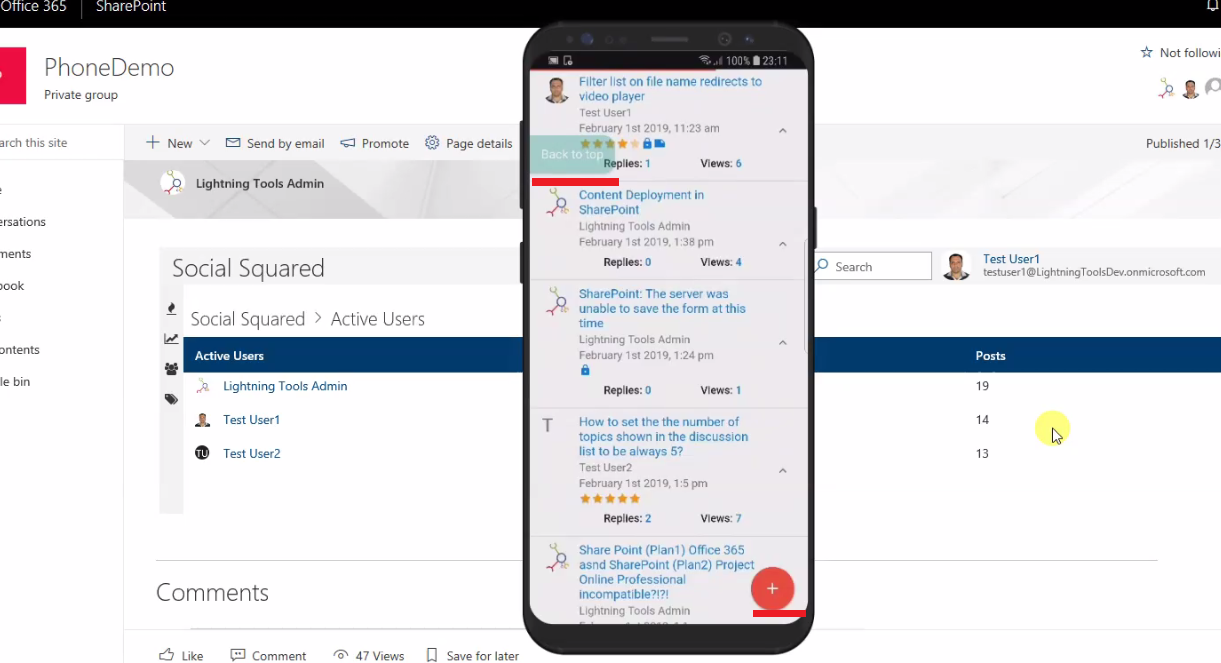

We define Back to top differently on topics' page as Add new topic red button already occupied the space.

Figure 42

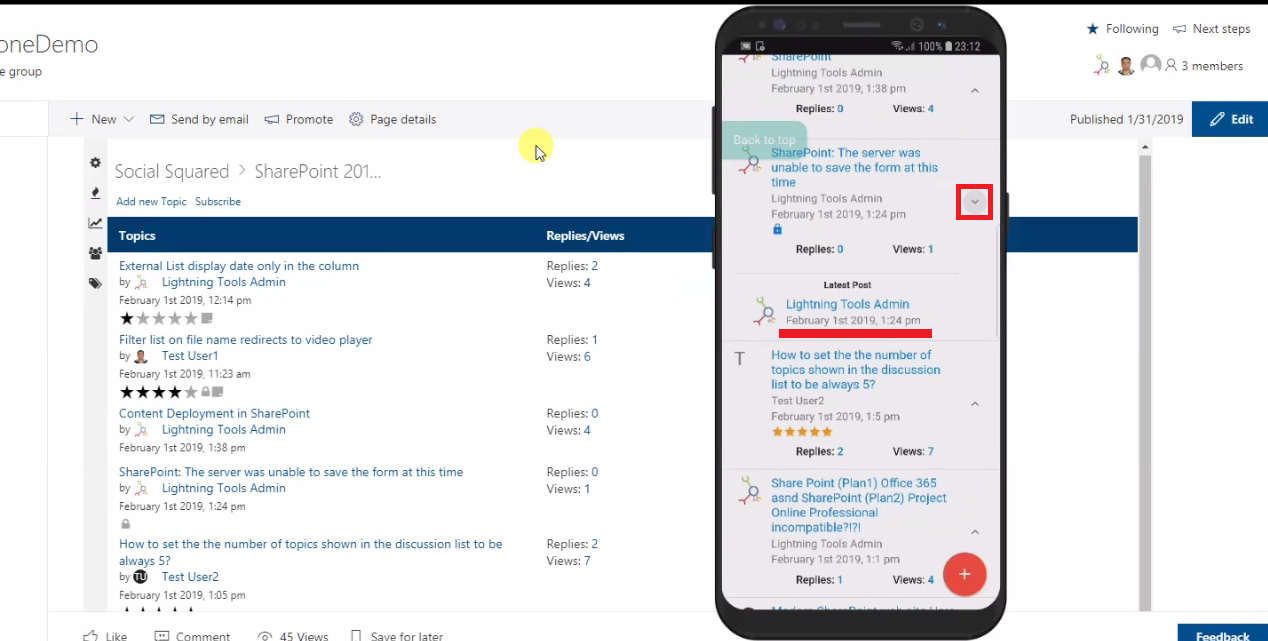

Latest Post section behaves like forums' Last Post section.

Figure 43

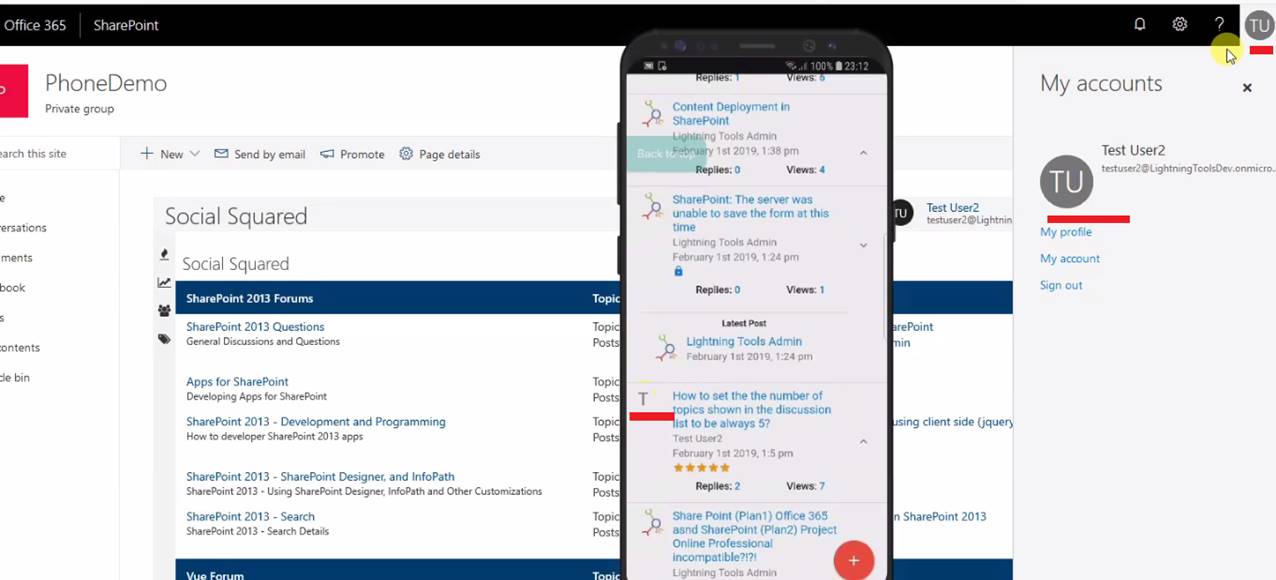

If signed in user does not have a picture specified then phone app will show the initial letter capitalized like T for Test User 2.

Figure 44

It is convenient to navigate to previous page just by tapping the icon located on top-left corner. You are on topics page and see forums icon to navigate to.

Figure 45

Here we navigated from topics page to posts page which is not ready yet. Users can navigate back to topics page by tapping left-top button.

Figure 46

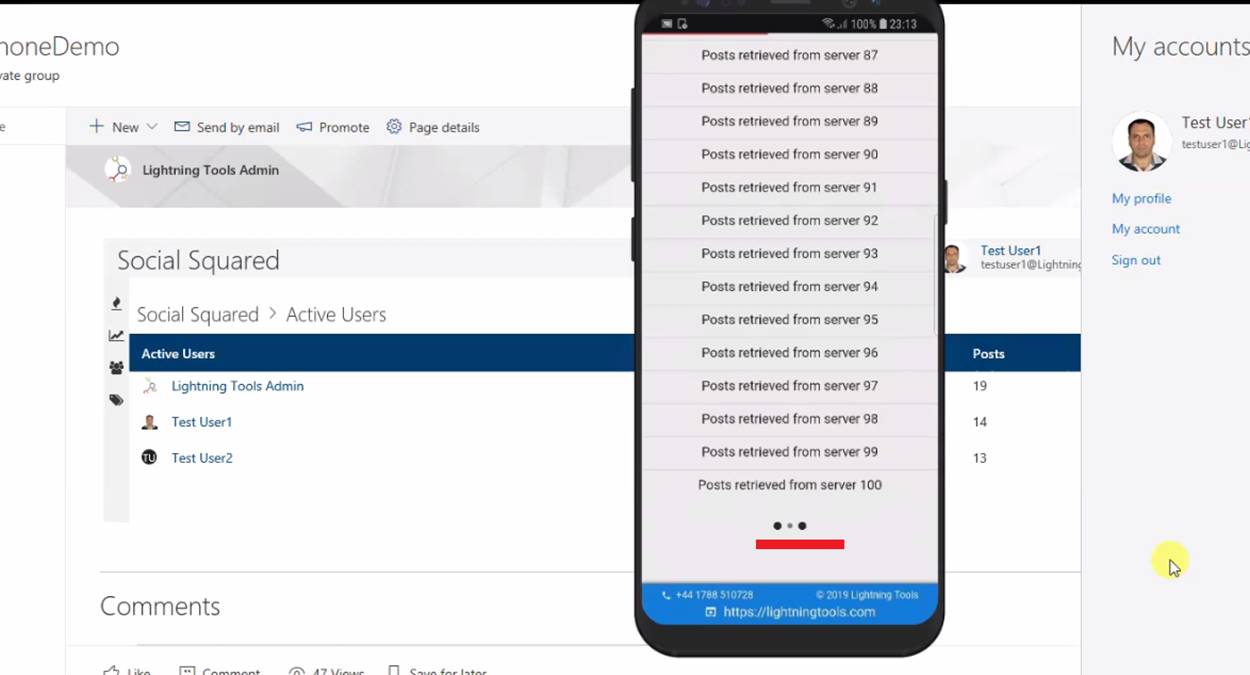

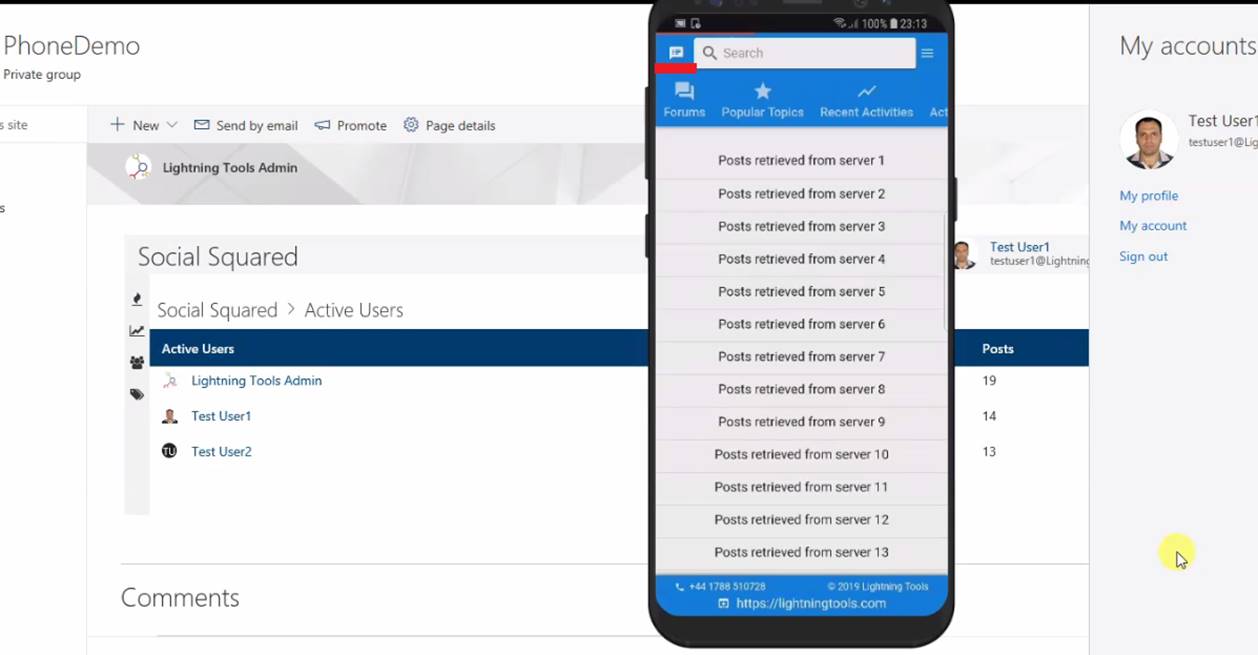

Posts page uses infinite scrolling like Facebook that progressively load new content as the user scrolls up the page.

Figure 47

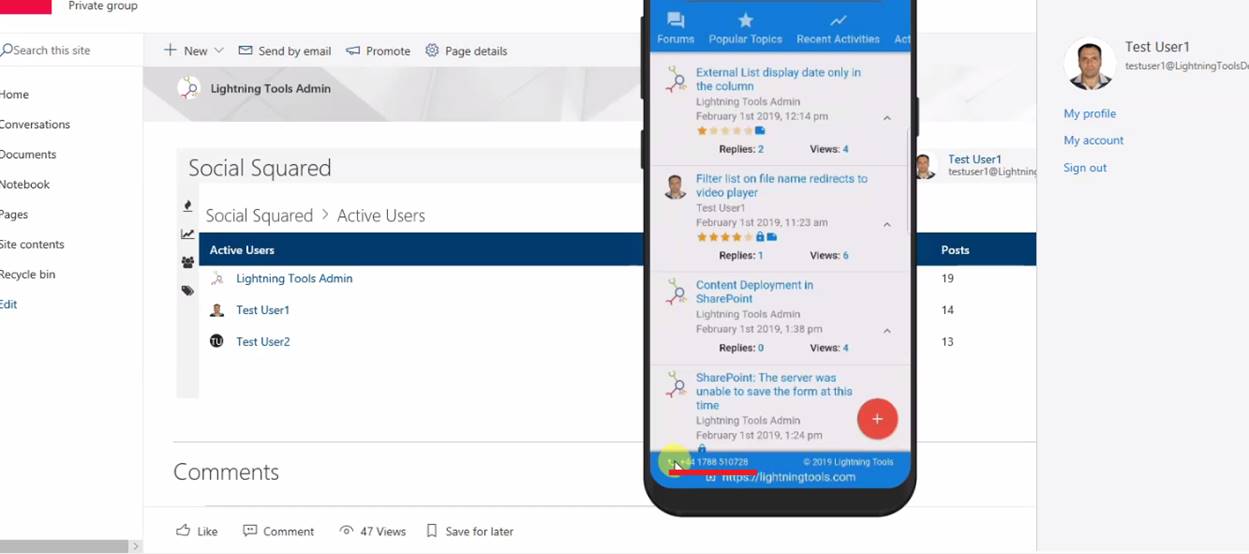

Call Lightning Tools directly from the app.

Figure 48

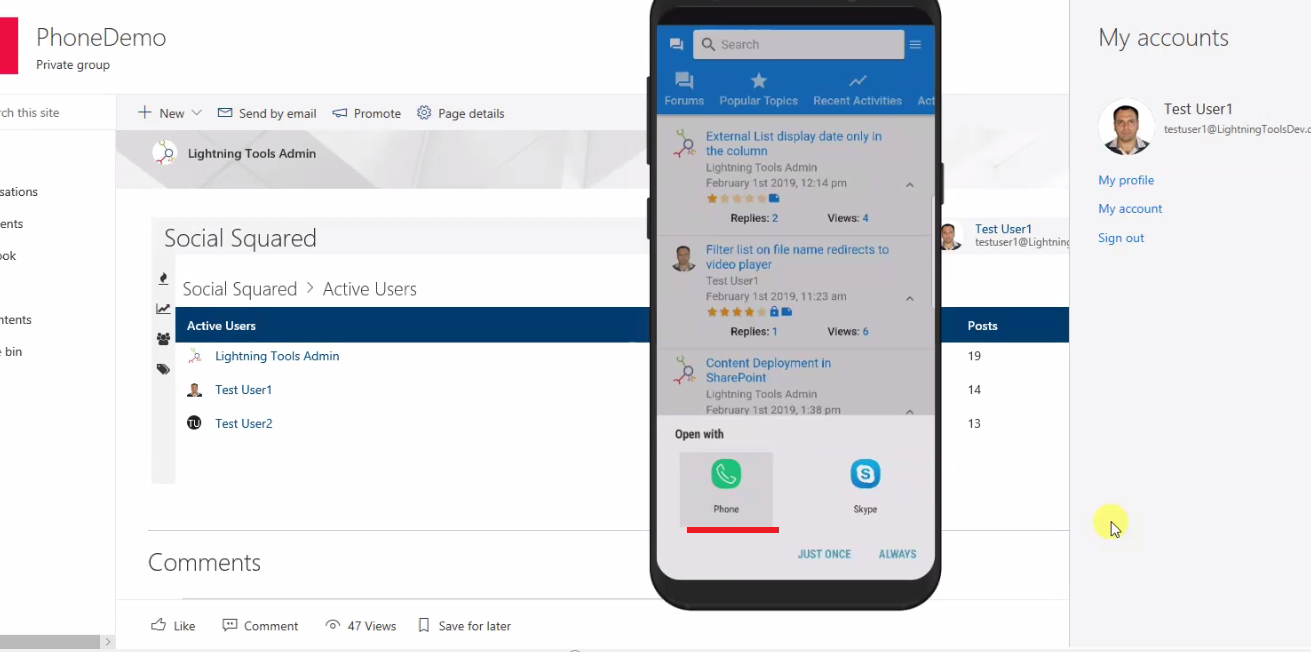

Select an app to make a call.

Figure 49

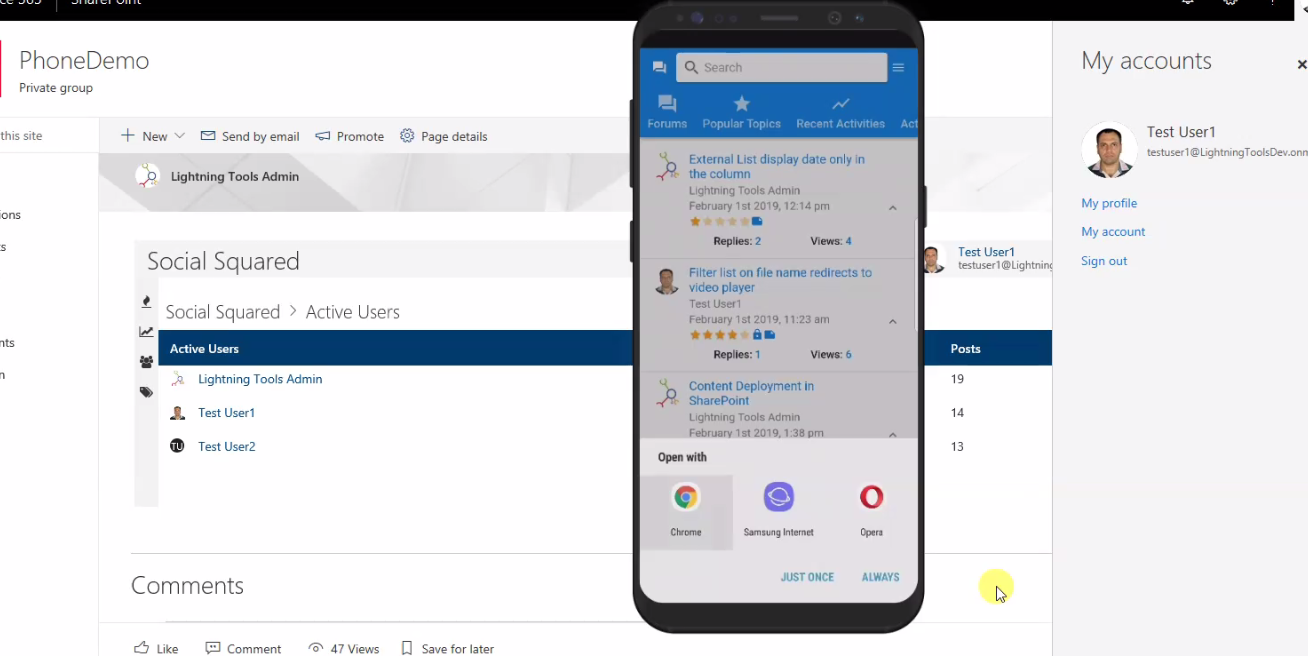

Apps allows you to navigate Lightning Tools web site as well.

Figure 50

Select an app to open Lightning Tools web site.

Figure 51

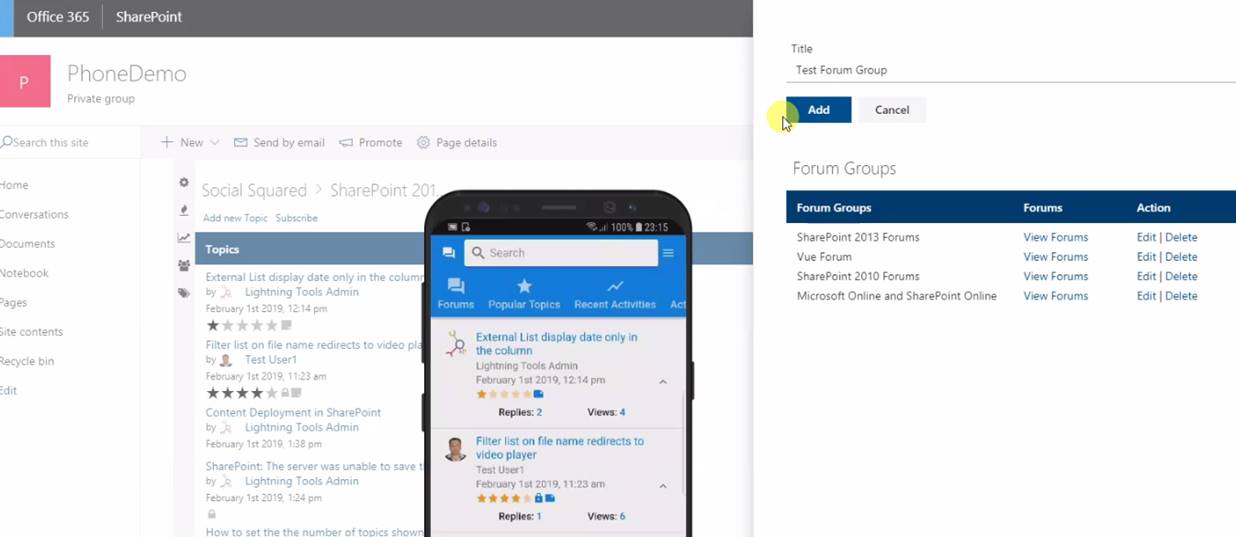

Let's create a new forum group.

Figure 52

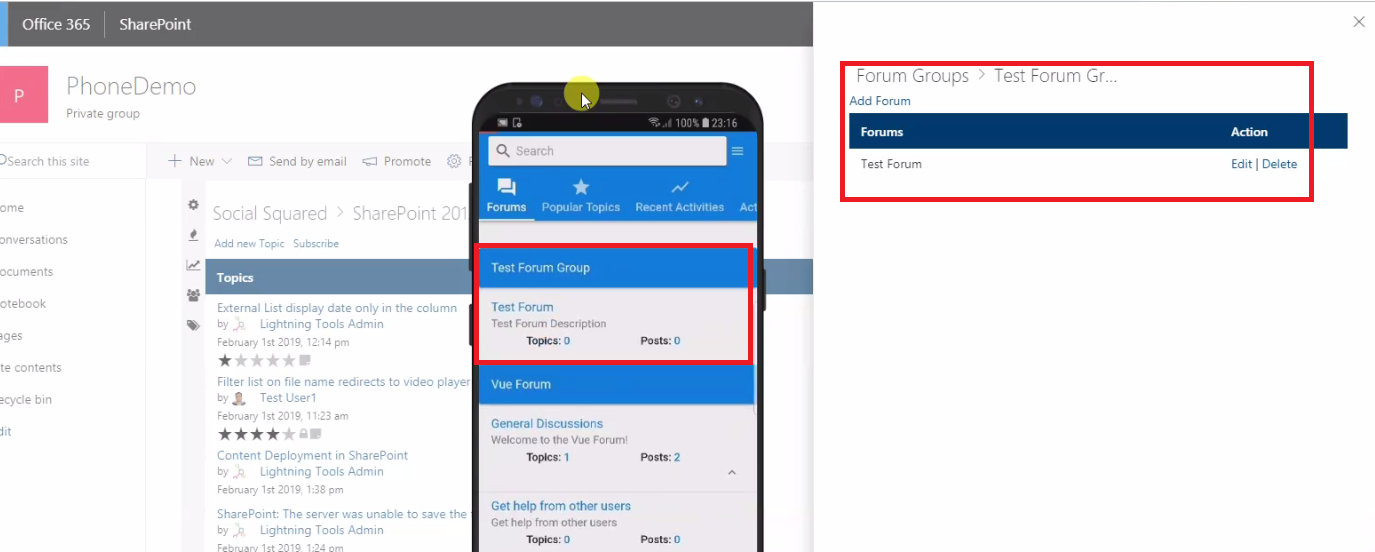

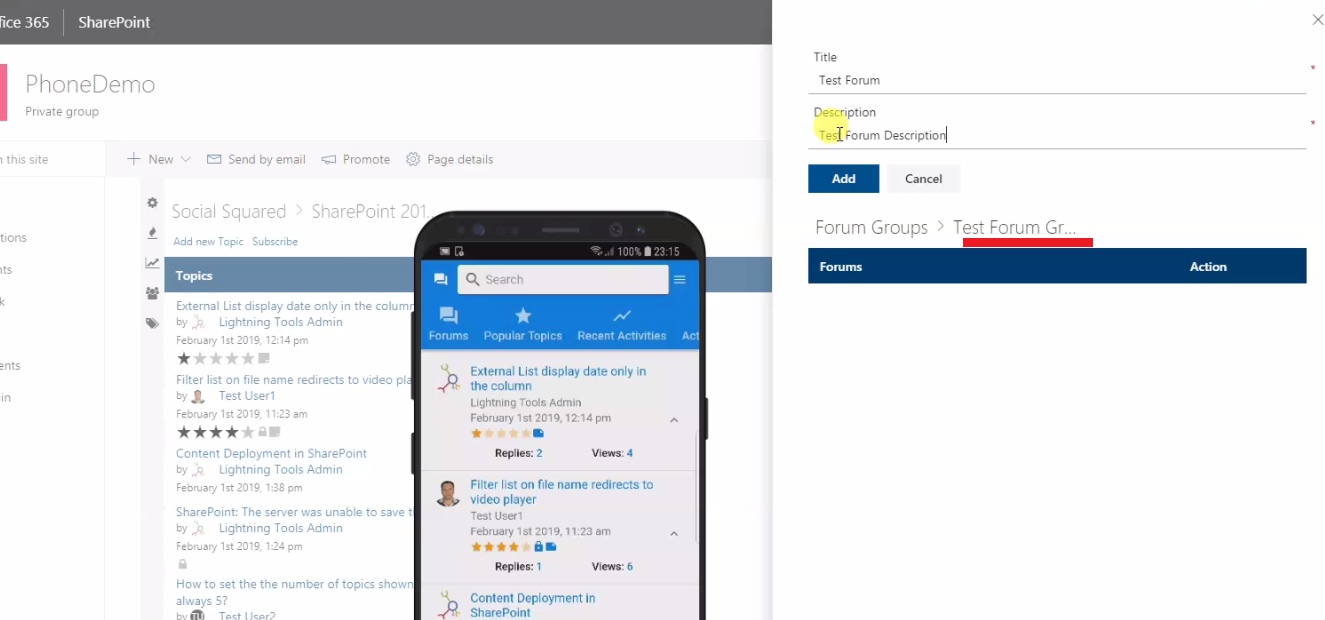

Create a new forum under newly created forum group.

Figure 53

Pull to refresh and you will see the forum on the phone and it is pretty fast!

Figure 54

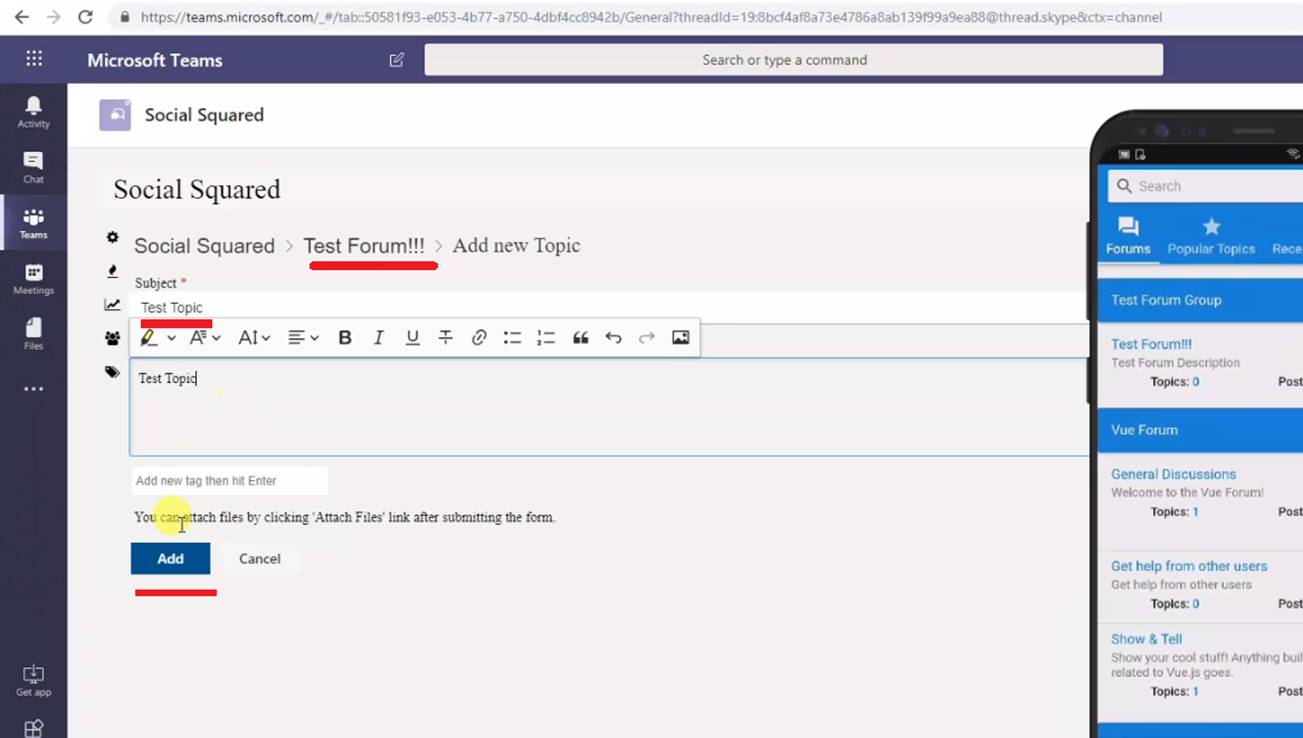

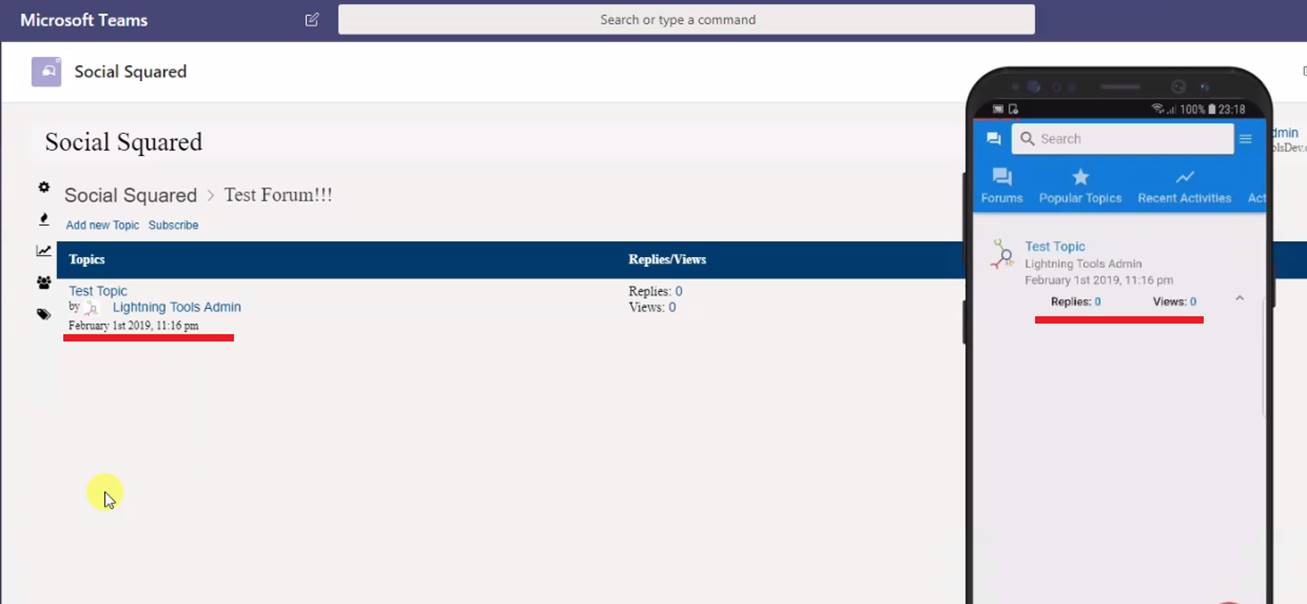

Let's add a new topic via Microsoft Teams tab.

Figure 55

Pull to refresh and the topic rendered on the phone.

Figure 56

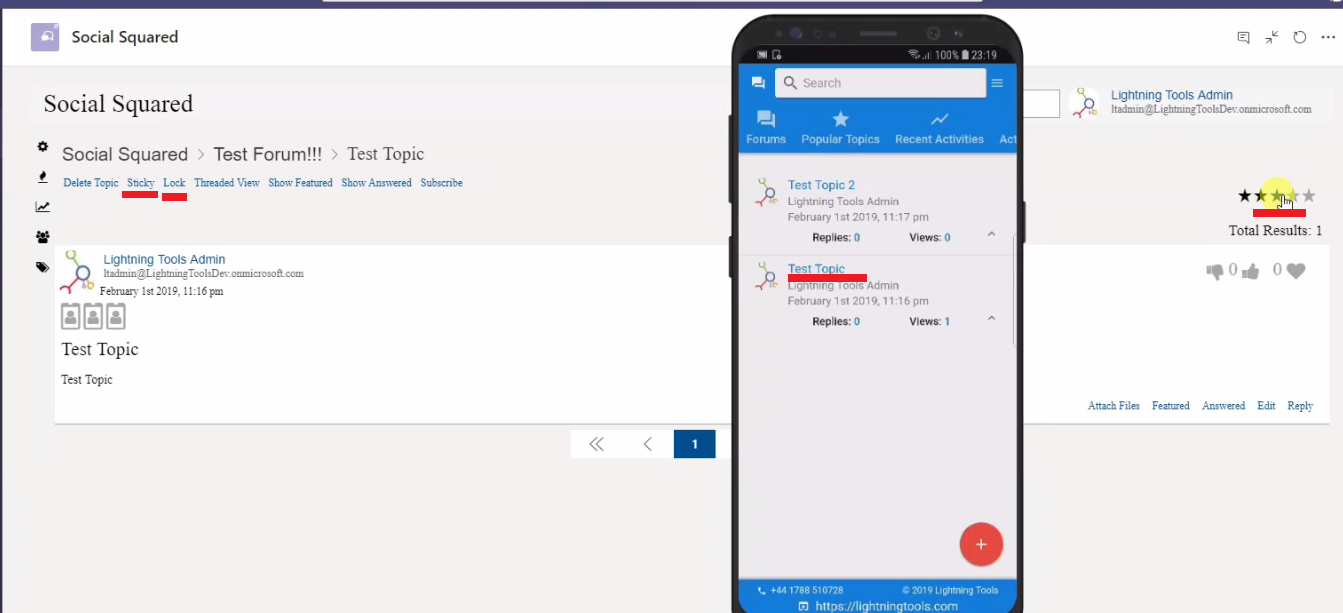

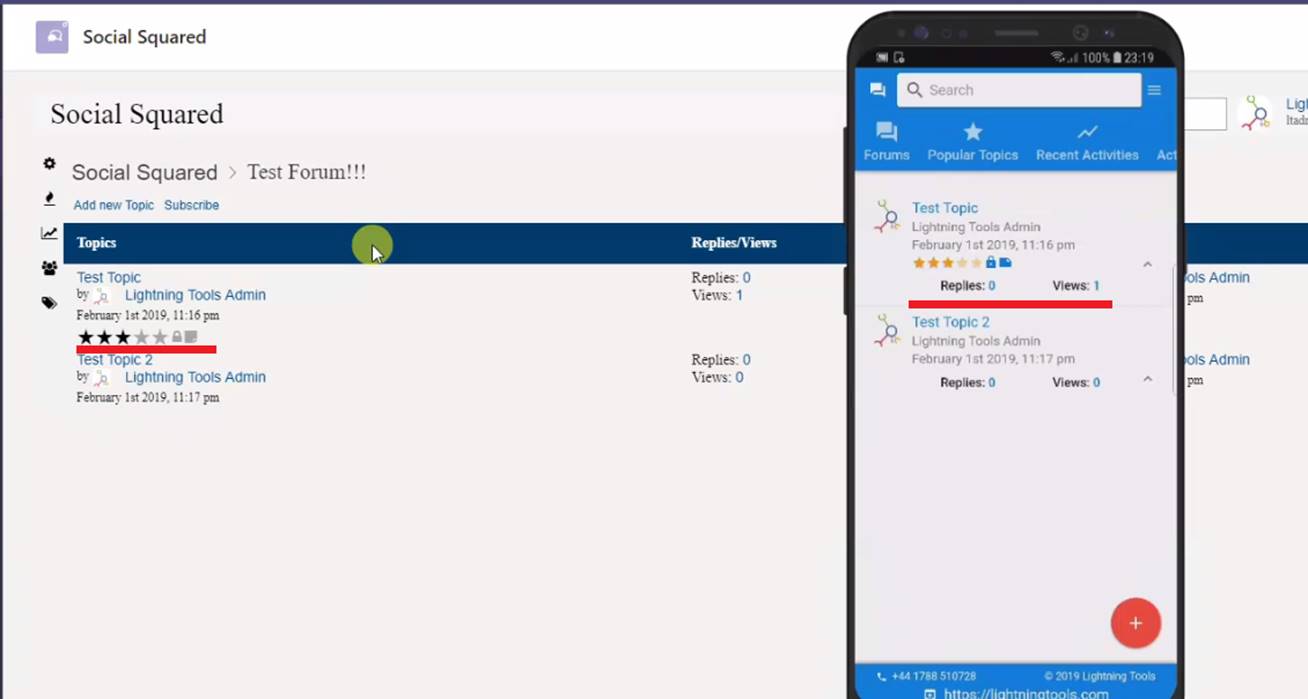

We created two topics. Now we are going to rate Test Topic then make sticky and lock.

Figure 57

As the topic is sticky it became the top one (compare to Figure 57).

Figure 58

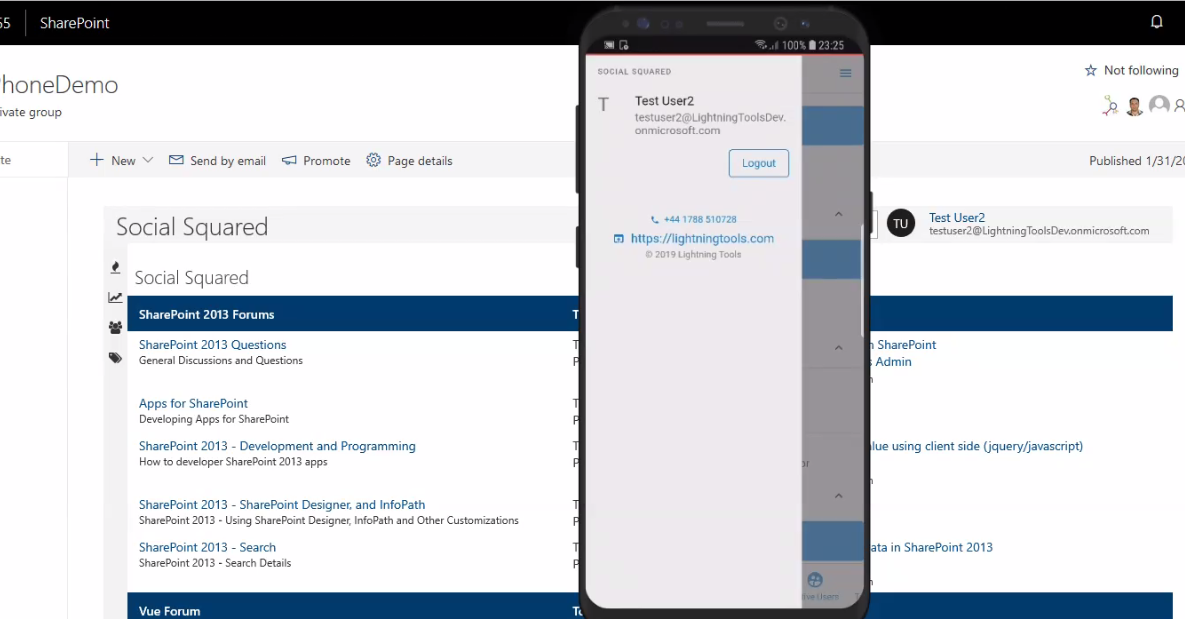

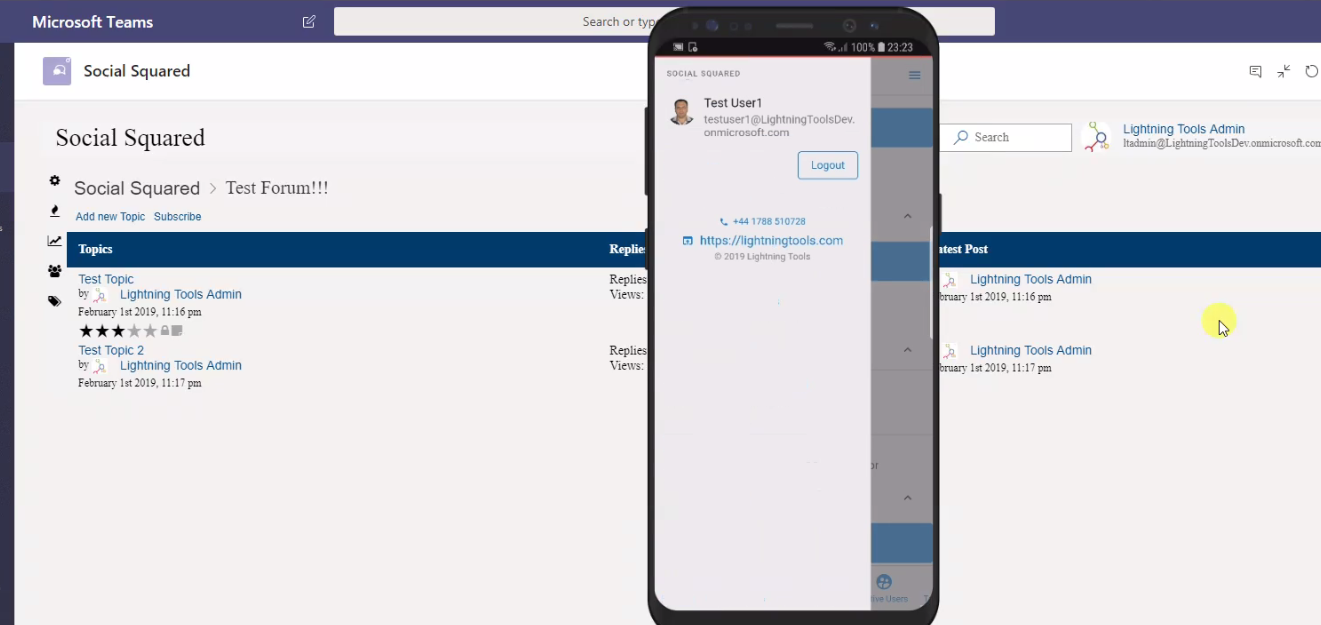

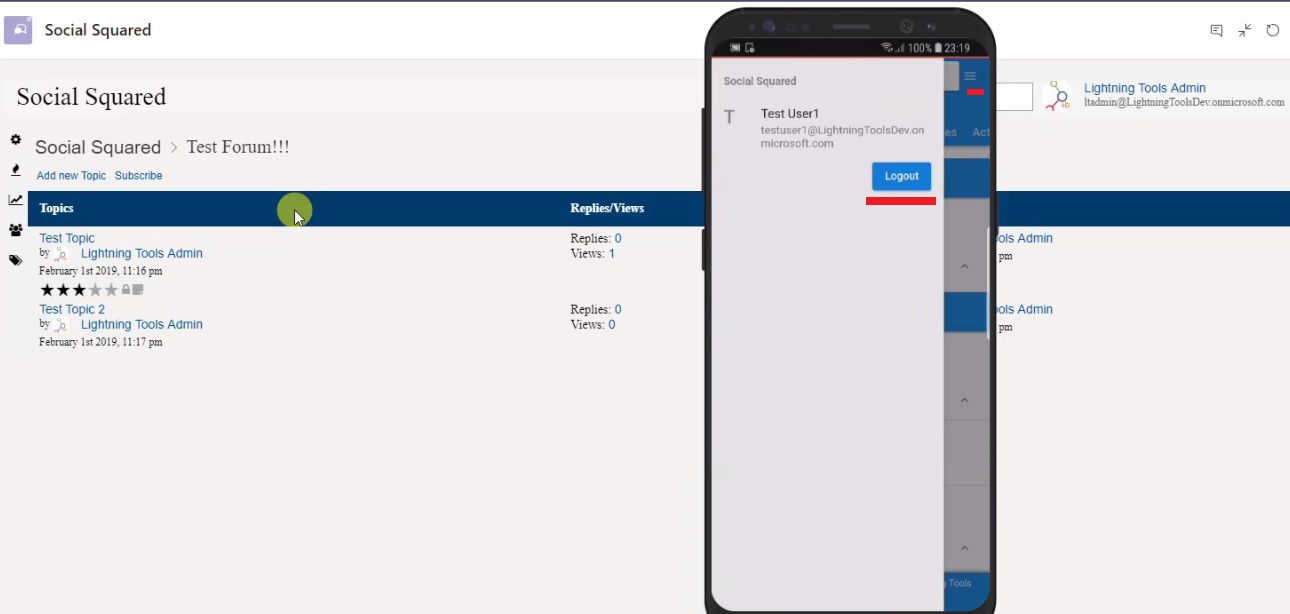

Tab menu icon located on right-top corner to bring up user's profile panel where Logout button is located (Note the user's profile picture is not retrieved yet).

Figure 59

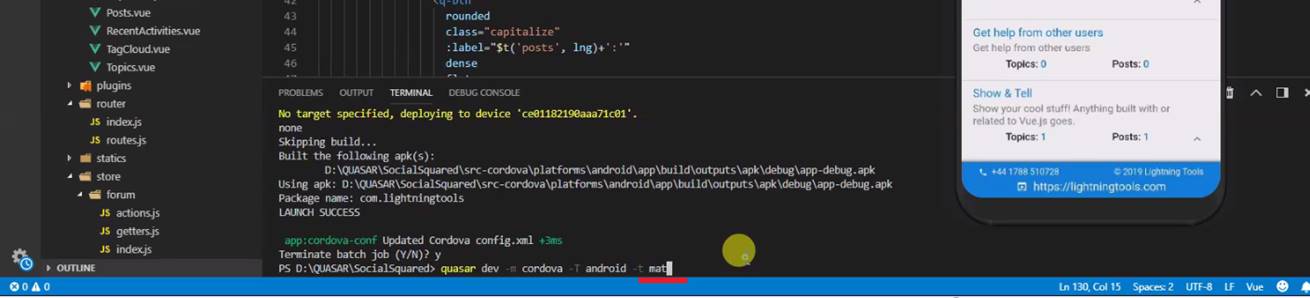

As we already stated you can develop with any Quasar theme, regardless of the platform you are building (Android, IOS). Our app was built with mat option which is material

themes for Android.

Figure 60

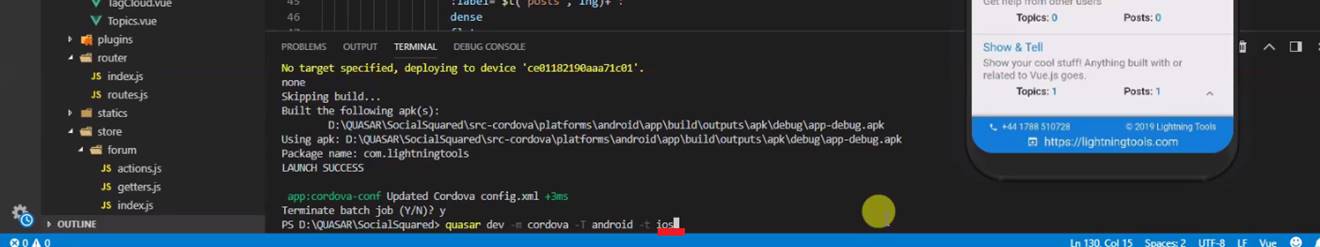

This time we are going to build with ios option for IOS.

Figure 61

You see IOS login page differs from Android one (compare to Figure 3).

Apple's Flat Design vs Google's Material Design.

Flat design is free from multi-dimensional elements and makes feel like all the objects are laying on a single surface. Material design

released by Google can be said as a branded product with a set of well-defined guidelines and principles. Flat design is a less intuitive

design and users get mixed up due to excessive flatness of objects. In flat design, clickable elements get usually confused with non-clickable

icons and texts. To overcome this problem, material design tries to introduce some skeuomorphism in the most simplified design. Though

material design looks flat, it stays multi-dimensional. In short, material design is an improved version of flat design which lays stress on the

minor details in terms of animations, shades and layers. Material design makes the product feel more intuitive when it comes to navigation

and yet maintain its simplicity.

Figure 62

Profile's page, IOS theme.

Figure 63

Forums page.

Figure 64

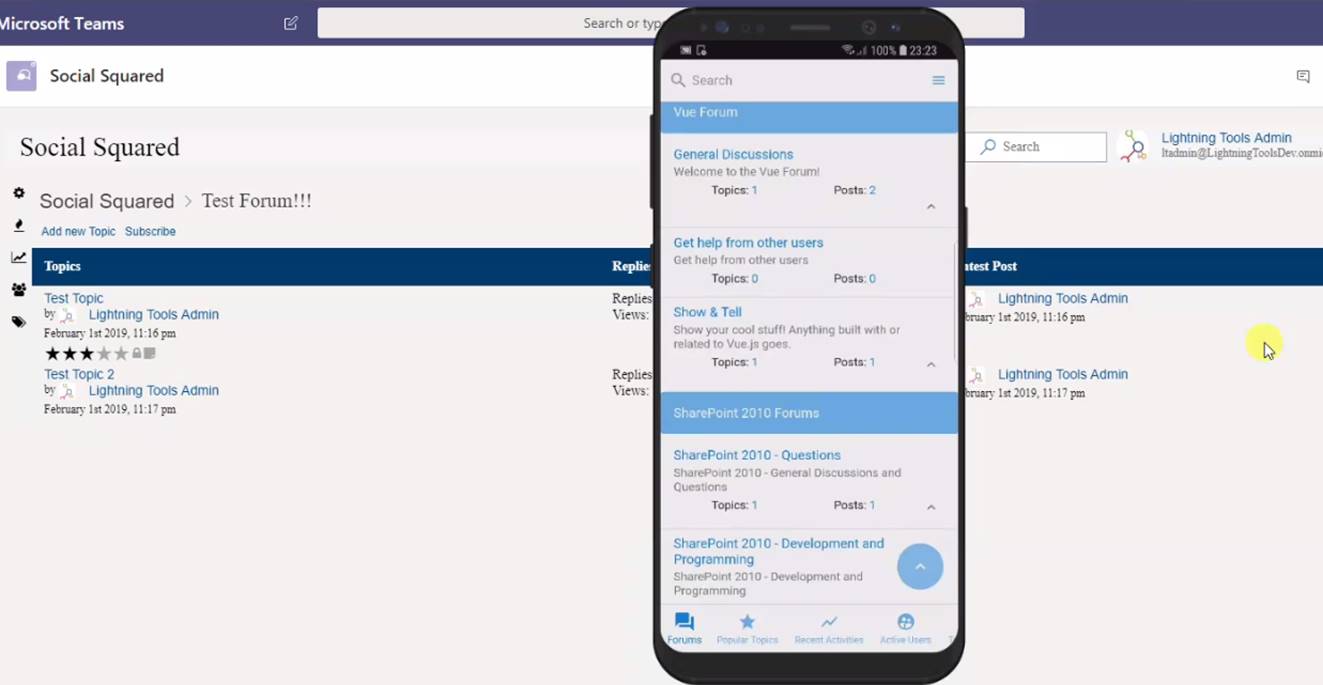

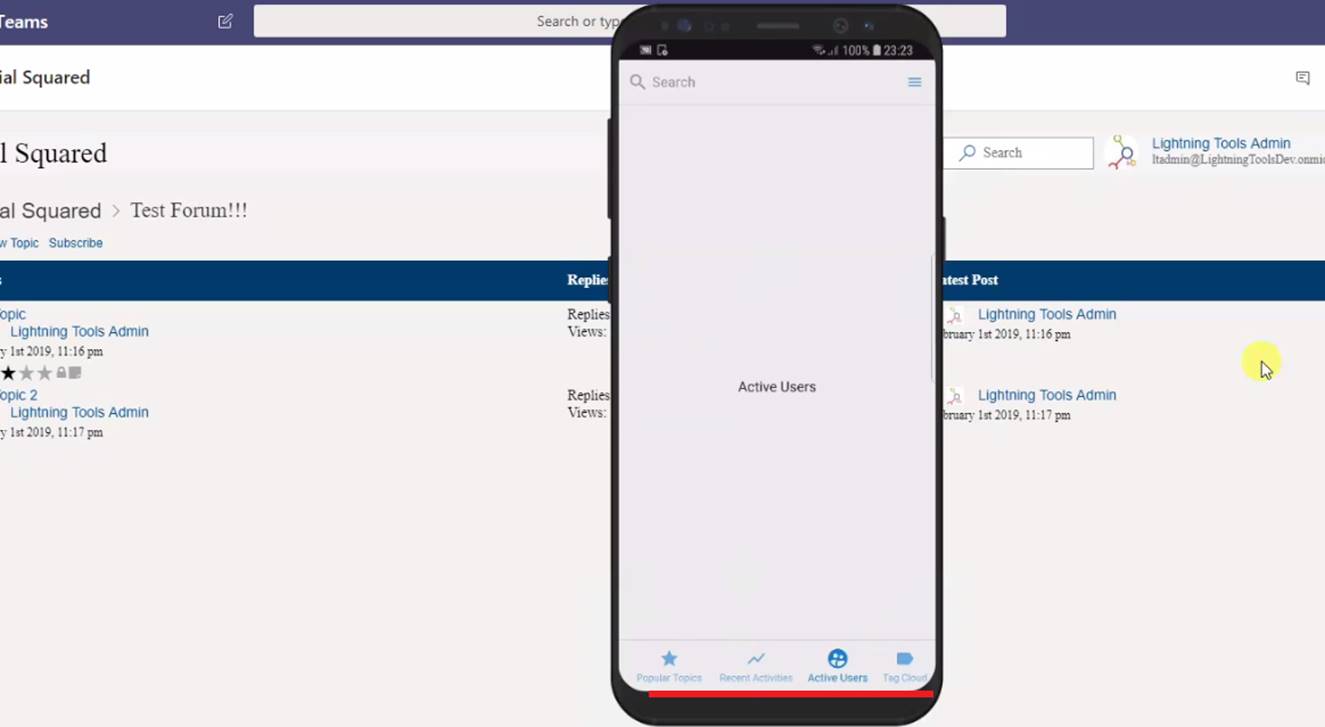

On Material Design theme we placed tabs between Layout header and page view, and on IOS theme between page view and Layout footer.

Figure 65

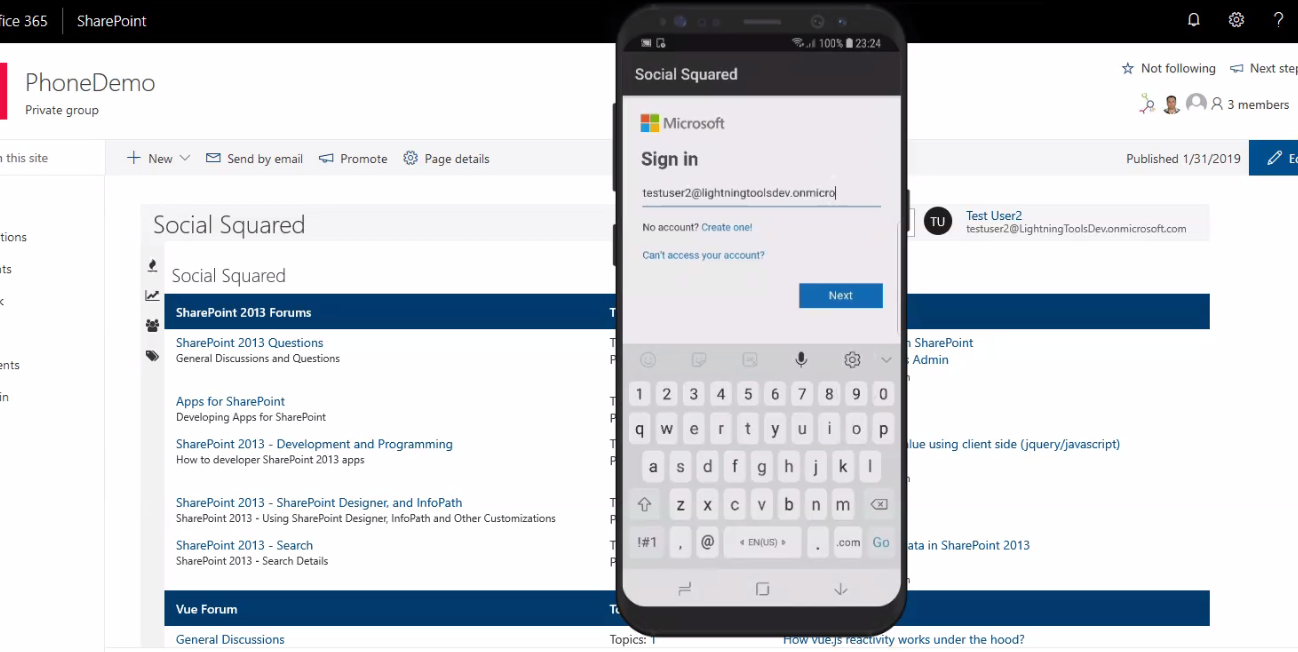

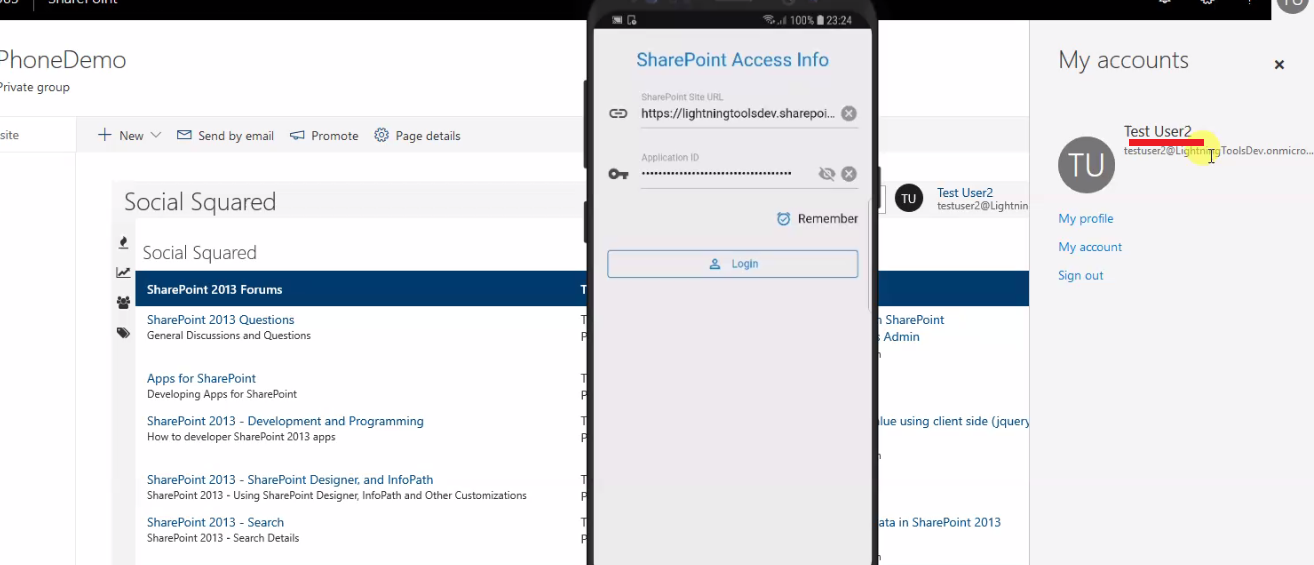

Let's login this time with Test user2 account

Figure 66

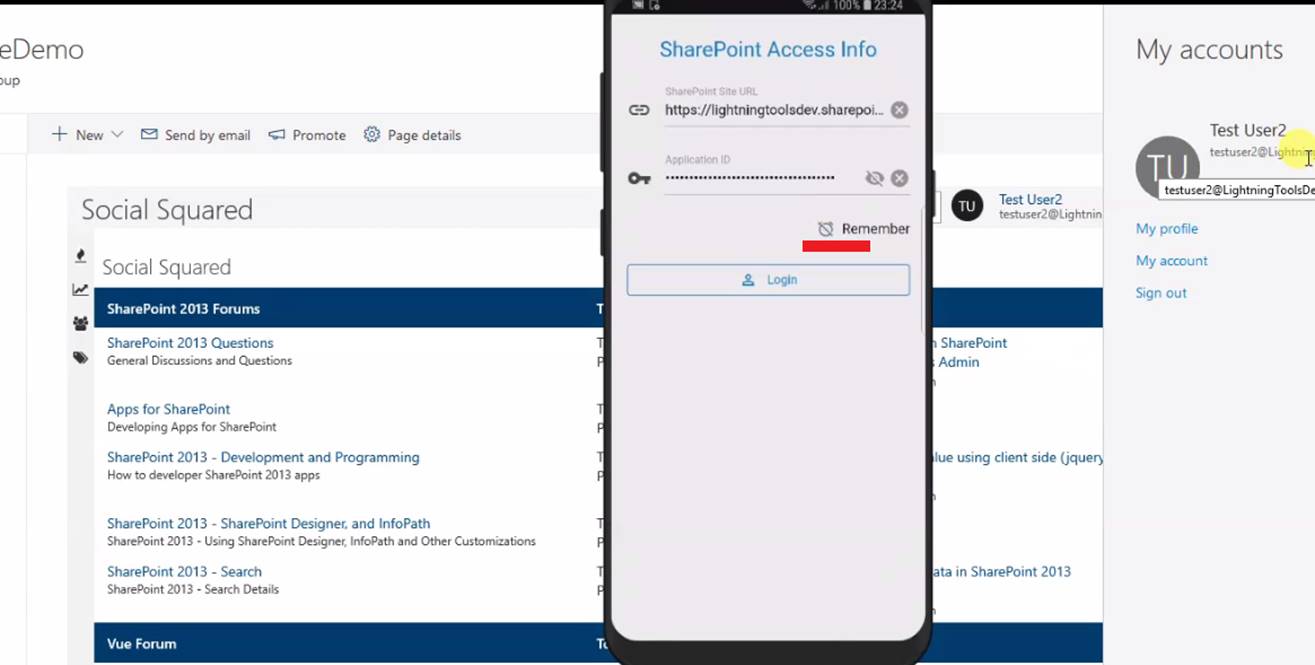

First, I tap remember icon to make it gray. It this mode neither SharePoint Access Info nor user's login and password will persist

(Figure 26, Figure 28). We need that as we are going to sign in with another account.

Figure 67

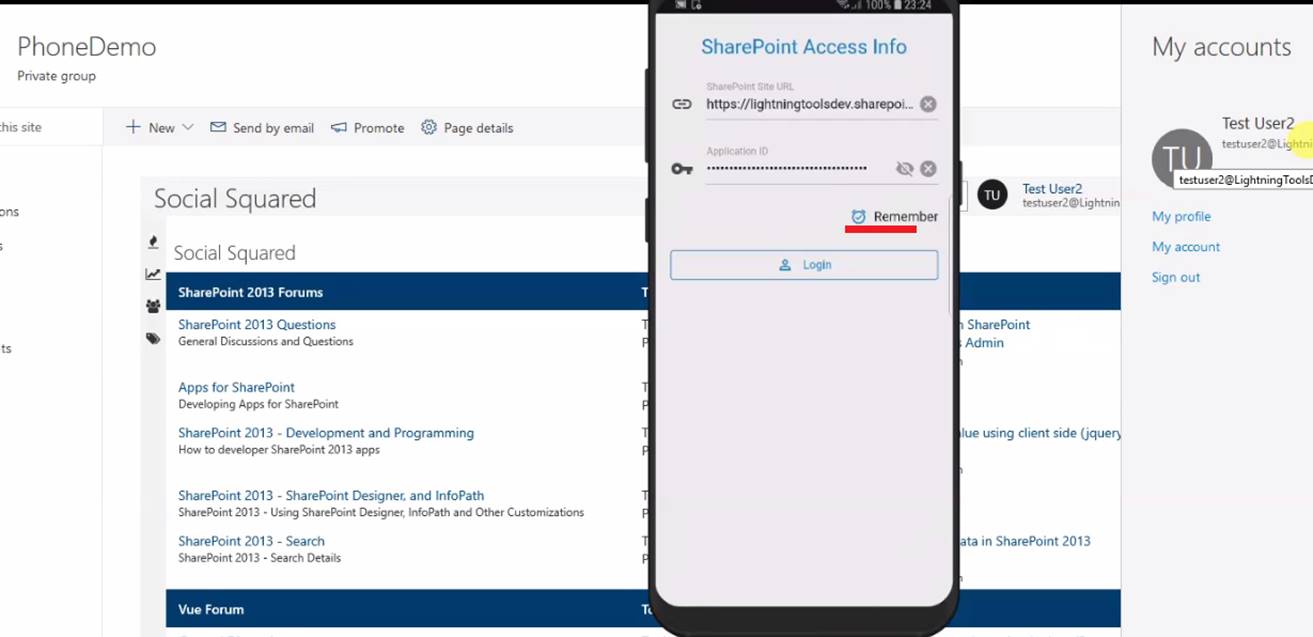

As we use the same SharePoint Access Info, we just check Remember again to keep the specified info. So, first we unchecked remember option to remove both SharePoint Access Info

and signed in user's email and password and then checked it again to keep SharePoint Access Info. Tap login button and Microsoft's Sign In page should come next.
